Ford Small Block Compatible 347 c.i. Engine and 4R70W Automatic Transmission - 415 Horsepower - Standard Edition Builder Series - Polished Pulley Kit - Fuel Injected

5237.25
20949.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          Description:�

          • Horsepower & Torque: 415 Horsepower / 415 ft. lbs. Torque
          • Compression Ratio: 10.0:1
          • Aluminum Heads
          • Hydraulic Roller Cam
          • Cast Crank
          • Forged Pistons

          Block:

          • BluePrint Engines High Strength Cast Iron block
          • Increased Deck Thickness and Strength Webbing
          • Priority Main Oiling
          • 4.000" Bore
          • 4-Bolt Main
          • 1-Piece Rear Main Seal
          • Improved Water Jacket Design

          Rotating Assembly:

          • BluePrint Cast Crankshaft
          • 3.400" Stroke
          • Forged I-Beam 5.400" Connecting Rods
          • Forged Pistons
          • 28oz Externally Balanced Front and Rear

          Cylinder Heads:

          • BluePrint Aluminum Cylinder Heads�- HP9009
          • 60cc Chamber
          • 2.02" Intake / 1.60" Exhaust Valves
          • 190cc Intake / 65cc Exhaust Runners

          Cam Specs:

          • Hydraulic Roller
          • .543 Intake /�.554 Exhaust Lift
          • 218 Intake /�226 Exhaust Duration
          • @.050-112 Degree Lobe Separation

          Ignition Timing:

          • 34 Degrees Total at 3500 RPM

          Also Includes:

          • Dual Plane, Satin Aluminum Intake Manifold
          • Holley Sniper 2 EFI System
          • Pro Billet Distributor
          • Mustang Style Valve Covers
          • 7 Quart Oil Pan
          • Dyno Tested and Shipped with Results
          • EFI Fuel Pump Kit
          • Front Accessory Drive with A/C Compressor, Power Steering, Alternator, and Water Pump

          Assembled with Complete�4R70W Automatic Transmission Package:

          • Includes Electronic Transmission Controller
          • Transmission Built to 650 HP
          • 2200-2600 Stall Torque Converter
          • Flex Plate
          • Starter
          • TPS Harness Included for Integration with Transmission Controller and EFI.
          • 4 Speed, Overdrive Transmission w/Lockup
          • GEAR RATIOS
            • First: 2.84 :1.
            • Second: 1.55 :1.
            • Third: 1.00 :1.
            • Overdrive: 0.70 :1.
            • Reverse: 2.32 :1.

          Notes:

          • Note that 4R70W transmission may require modifications/replacement of driveshaft, transmission mount, exhaust routing, etc.�
          • The front accessory drive on this engine fits many vehicles, however it is the customer responsibility�to accurately�measure and confirm fitment.� Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.

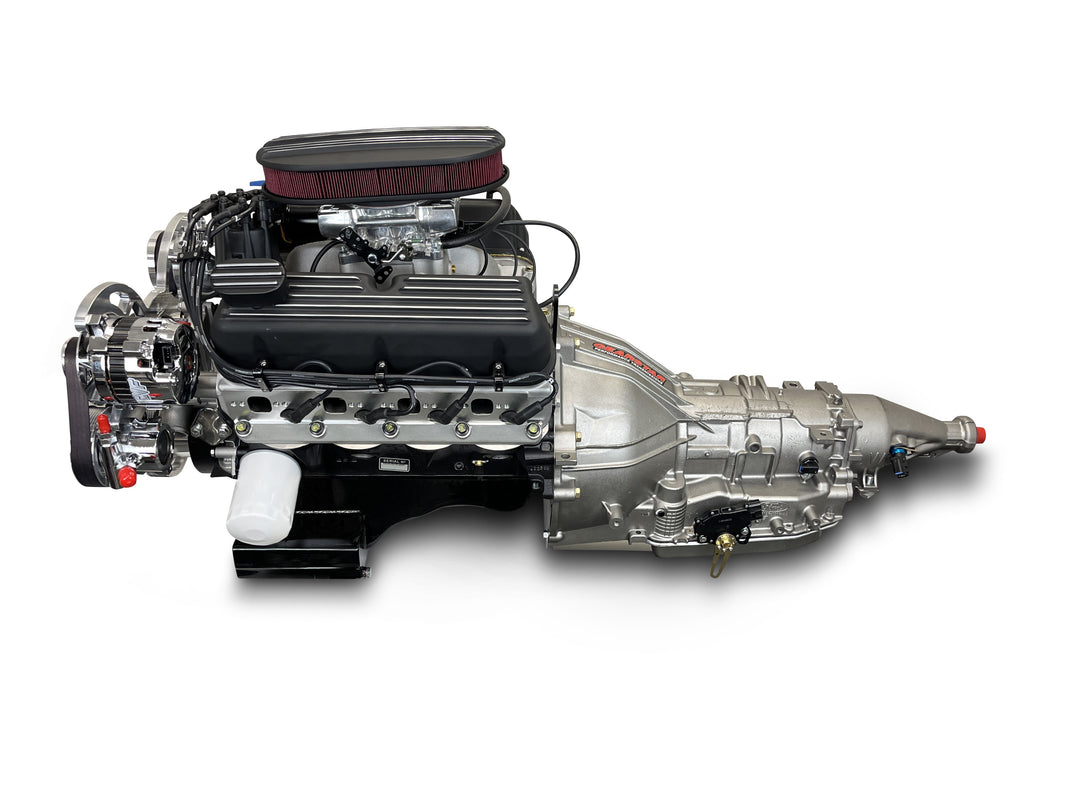

          • Package Ships assembled as pictured.�
          • IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE,�STOP�AND CALL US AT�1-800-483-4263 FOR PROPER FITMENT OR VISIT�FACTORYFIVEENGINES.COM
