GM Big Block Compatible 540 c.i. ProSeries Engine - 670 Horsepower - Deluxe Dressed With Pollished Pulleys - Carbureted

Description:

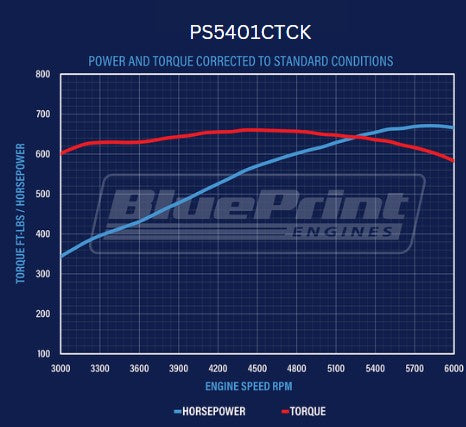

• Horsepower & Torque: 670 Horsepower / 660 FT. LBS. Torque
• Compression Ratio: 10.0:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Forged Crank
• BluePrint Engines Forged Pistons


Block:

• BluePrint Engines High Strength Cast Iron Block
• Manufactured and Machined in the USA!
• Mech Fuel Pump Provision: Yes
• 1-Piece Rear Main Seal
• Standard Deck
• 4-Bolt Main
• 4.500" Bore


Rotating Assembly:

• BluePrint Forged Crankshaft
• 4.250" Stroke
• Forged H-beam 6.385" Connecting Rods
• Forged Pistons
• Internally Balanced Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads -PS8013
• 119cc Chamber
• 2.30" Intake / 1.88" Exhaust Valves
• 316cc Intake / 124cc Exhaust Runners
• Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting
• Must Verify Header / Exhaust Clearance

Cam Specs:

• Hydraulic Roller

• .647 Intake / .647 Exhaust Lift
• 248 Intake / 254 Exhaust Duration
• @ .050-112 Degree Lobe Separation

Also Includes:

• Polished Front Accessory Drive with A/C Compressor, Power Steering Pump, Alternator, and Water Pump�
• Holley Classic 750cfm Vacuum Secondary Carburetor w/ Manual Choke
• Pro Billet Ready Run Distributor - BPP350RBK
• Intake Manifold Dual Plane, Satin Aluminum
• Harmonic Balancer
• Timing Cover
• Valve Covers
• Dipstick
• Oil Pan�


�Notes:

• Not for EGR

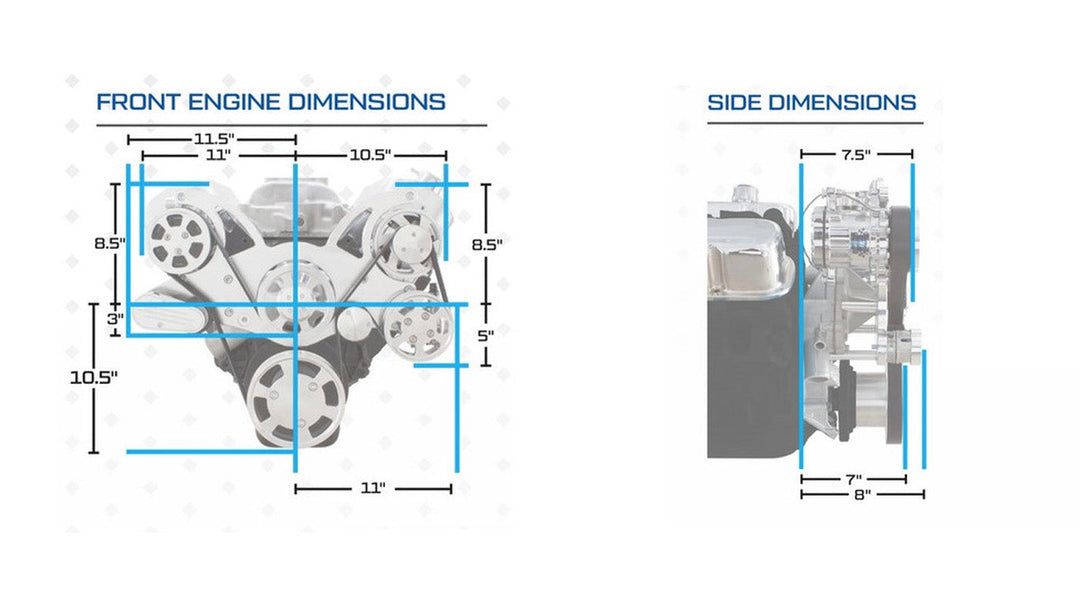

• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility�to accurately�measure and confirm fitment.� Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
