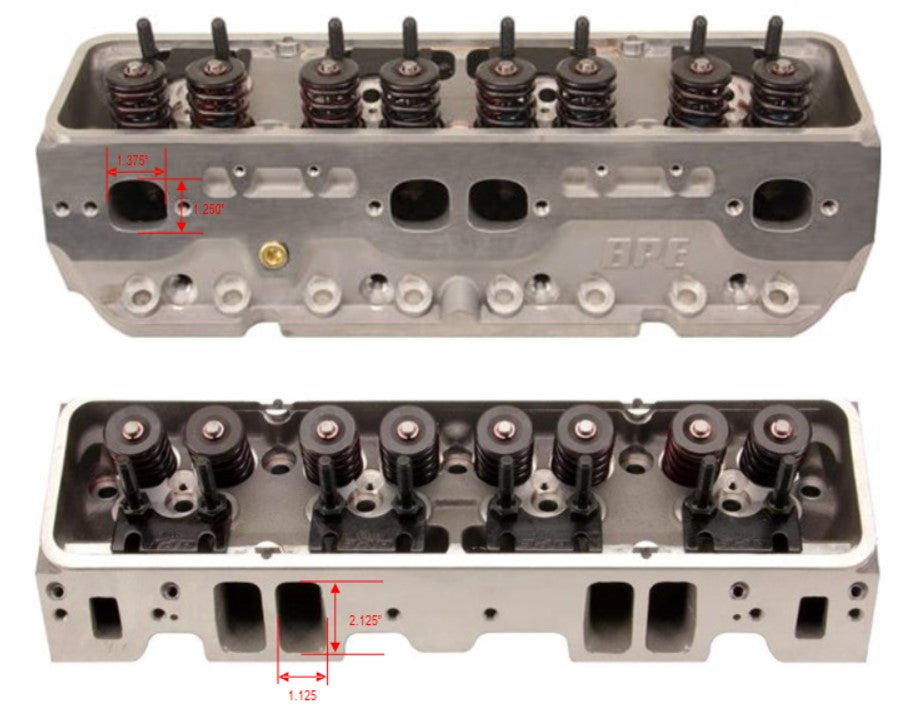

Aluminum Assembled Cylinder Head - GM SB Compatible - 195cc - Sold as a Pair

Description:

Get big power on a small budget with BluePrint Muscle Series cylinder heads! These lightweight aluminum heads bolt up to your small block Chevy and feature 195cc intake/75cc exhaust runners, 64cc combustion chambers, and 2.02" intake/1.60" exhaust valves. They're fully assembled with valve springs, retainers, locks, guide plates, studs, and seals. Manufacturers part number H8002K

• Maximum Output for Less Money!
• Designed and Produced by BluePrint Engines
• Fully Assembled with Heavy Duty Components
• Backed by Our Full 12-Month Limited Warranty

Intake:

• Intake�Runner�Volume�(cc): 195cc
• Intake�Port�Location: Standard
• Intake Port Shape: Rectangular
• Intake�Valves�Included: Yes
• Intake�Valve�Diameter�(in): 2.02 in.
• CFM Port Flow Average @ 28"
• .100" �� 83
• .200" �� 150
• .300" �� 190
• .400" ���223
• .500" ���252
• .600" - 245

Exhaust:

• Runner�Volume�(cc):� 75cc
• Exhaust�Valve�Diameter�(in): 1.600 in.
• Exhaust�Valves�Included: Yes
• Port Shape: Square
• Exhaust Port Location: Raised .500 in.
• CFM Port Flow Average @ 28"�
• .100" �� 83
• .200" �� 130
• .300" �� 166
• .400" �� 193
• .500" �� 207
• .600" - 213

Combustion Chamber:

• Combustion Chamber Volume (cc): 64cc
• CNC-Machined Combustion Chamber: No

Valve Specs:

• Maximum Valve Lift (in): .575 in.
• Intake Valve Angle: 23 Degree
• Exhaust Valve Angle: 23 Degree
• Valve�Guides�Included: Yes
• Valve�Guide�Material: Manganese Bronze
• Valve�Seats�Machined: Yes
• Valve Seat Machine Style: 3-Angle
• Valve�Seat�Material: Chrome Nickle
• Valve�Stem�Seals�Included: Yes
• Valve�Stem�Seal�Style: Viton庐 Fluoroelastomer

Springs:

• Valve�Springs�Included: Yes
• Spring Pressure Open: 295-305 @ 1.225
• Spring Pressure Closed: 115-125 @ 1.800
• Outside�Diameter�of�Outer�Spring�(in): 1.437 in.
• Damper�Spring�Included: Yes
• Number of Springs Per Valve: Dual
• Retainers�Included: Yes
• Retainer Material: Chromoly Steel
• Locks�Included: Yes
• Lock�Style: 7 Degree

Rocker Arms:

• Rocker Arm Studs Included: Yes
• Rocker Arm Nut Thread Size: 7/16 in.
• Rocker Arms Included: No
• Rocker Arm Nut Included: No

Guide Plate:

• Guide Plate Included: Yes��
• Guide Plates Pushrods: 5/16 in.

Misc:

• Spark�Plug�Style: Straight �� .750 Reach Gasket
• Spark Plug Position: Vortec Plug Placement
• Valve Cover Mounting Style: Accepts Perimeter & Center Bolt
• Valve Cover Mounting Style: Perimeter Bolt
• Accessory Bolt Holes Drilled: Yes 3/8-16 in.
• Camshaft Style: Hydraulic Roller
• Steam Holes�Drilled: No
• Oiling�Style: Through Pushrod
• Machined�for�O-Ring: No
• Heat�Crossover: No


Qty:

• Sold As a Pair

Warranty:

• Backed by our full 12-month limited warranty!
