  • BluePrint Motorsports GM Small Block Compatible 396 c.i. Engine - 530 Horsepower - Base Dressed - Carbureted

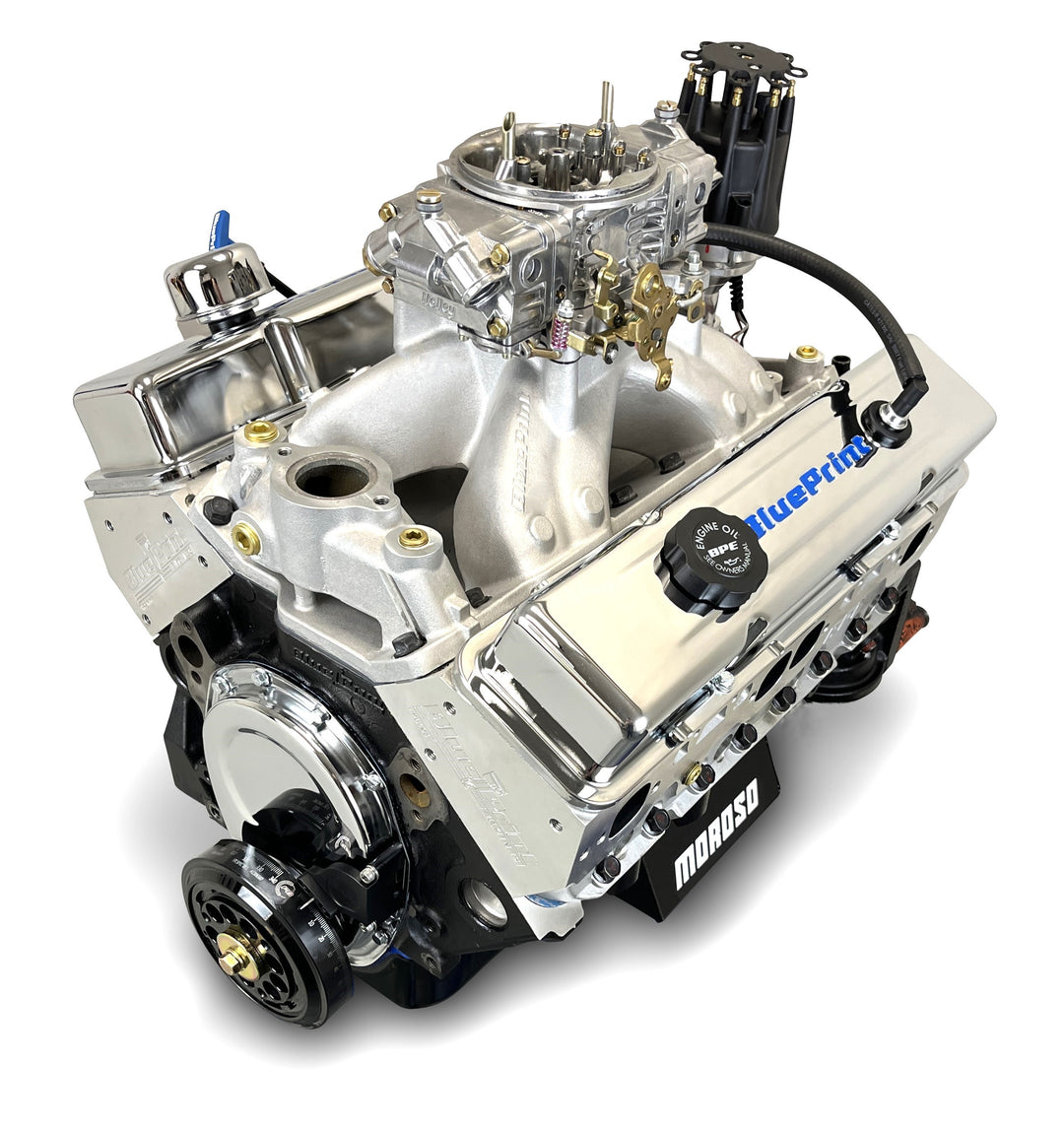

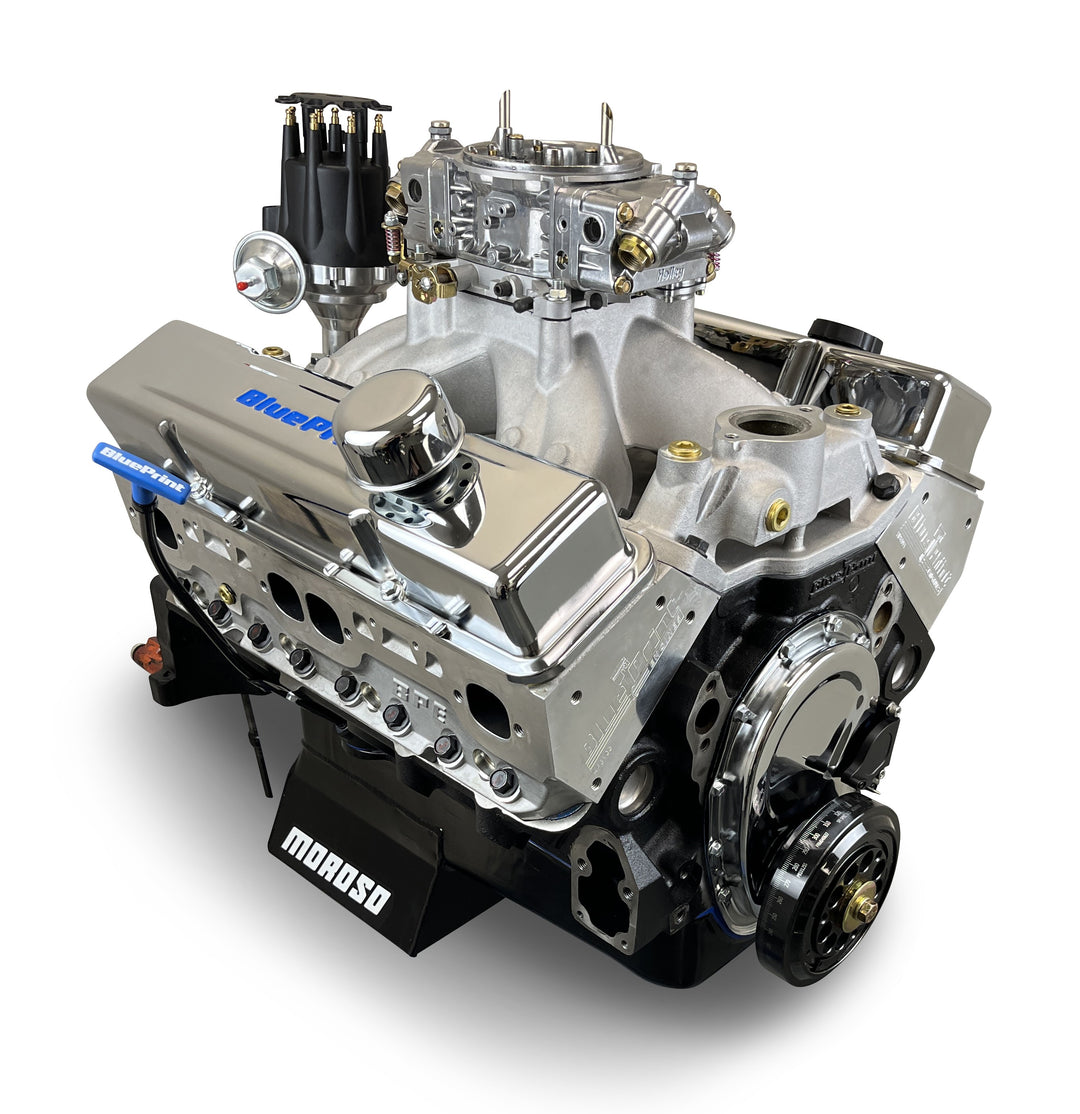

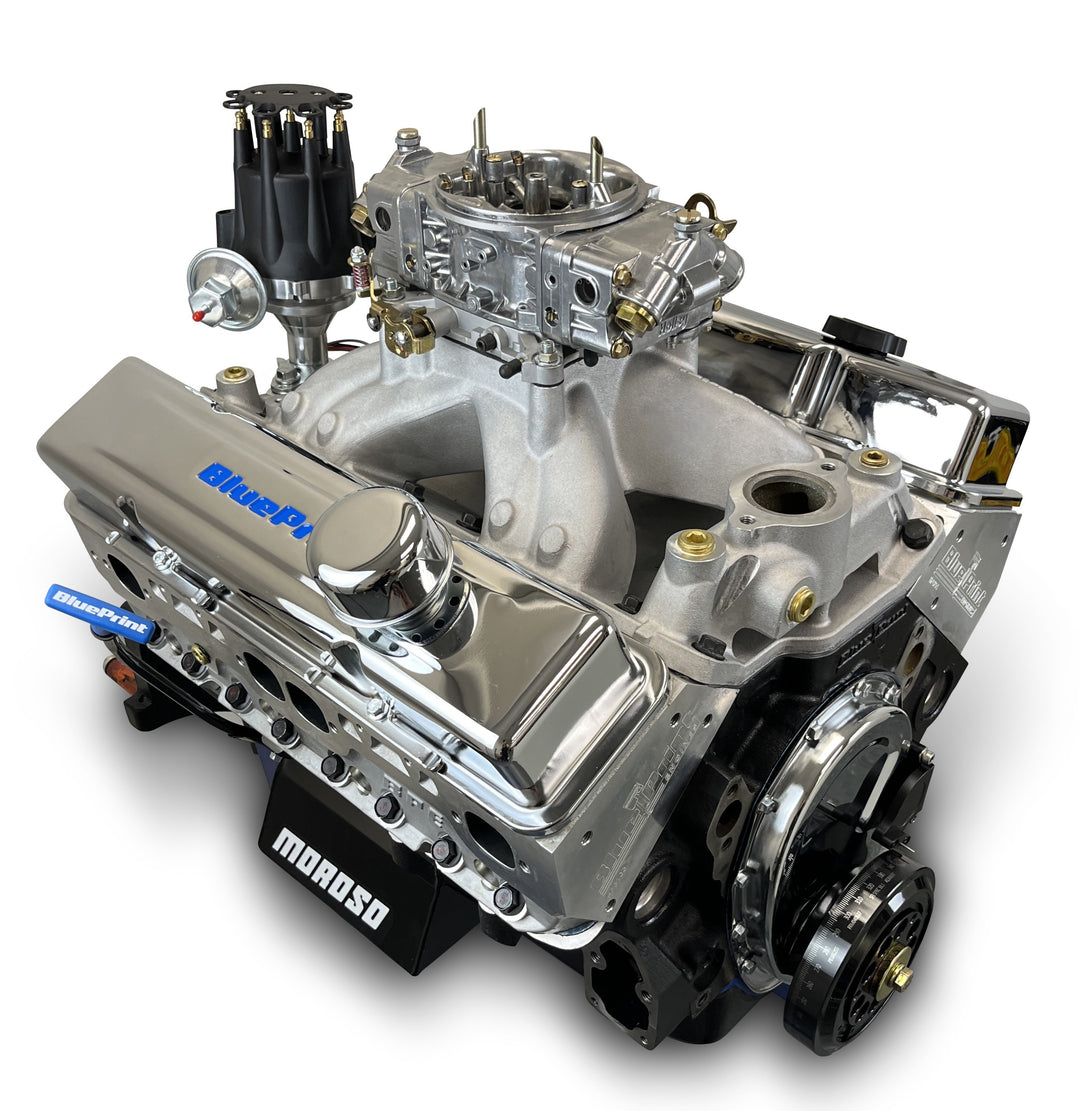

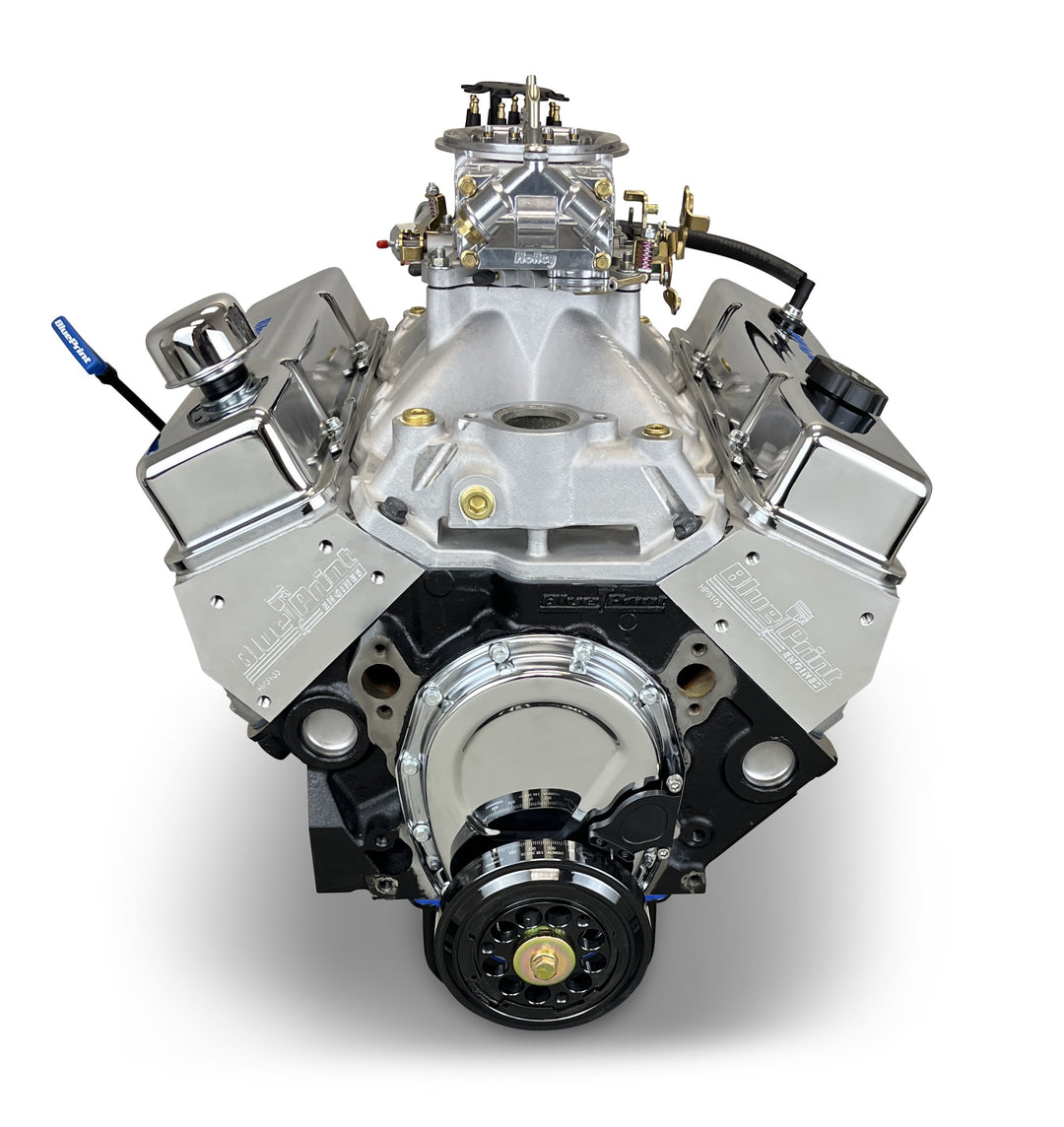

BluePrint Motorsports GM Small Block Compatible 396 c.i. Engine - 530 Horsepower - Base Dressed - Carbureted

1999.75
7999.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          **BluePrint Motorsports engines are built for maximum performance and are intended for extreme duty applications.

          Overview:

          BluePrint Engines introduces the all-forged Small Block Chevy-Compatible engine. Built for hard-hitting racing performance. Designed to handle extreme conditions, this powerhouse is packed with race proven components.

          Description:

          • Horsepower & Torque: 530 Horsepower / 480 FT. LBS. Torque
          • Compression Ratio: 10.4:1
          • BluePrint Engines Aluminum Heads
          • BluePrint Engines Hydraulic Roller Cam
          • BluePrint Engines Forged Crank
          • BluePrint Engines Forged 4032 Pistons

          Block:

          • BluePrint Engines High Strength Cast Iron Block
          • Cylinders Honed on Computer-Controlled Machine to Within .0002 Straightness and Roundness
          • Cylinders are Sonic Tested for Thickness
          • Drilled and Tapped for Clutch Linkage
          • Align Honed Main Bearing Bore
          • Mech Fuel Pump Provision: Yes
          • Passenger Side Dipstick
          • 1-Piece Rear Main Seal
          • 4-Bolt Main
          • 4.000" Bore

          Rotating Assembly:

          • BluePrint Forged Crankshaft
          • 3.875" Stroke
          • Forged I-beam 6.000" Connecting Rods
          • BluePrint Engines Forged 4032 Pistons
          • Internally Balanced Front - Externally Balanced Rear

          Cylinder Heads:

          • BluePrint Aluminum Cylinder Heads - HP8103
          • 64cc Chamber
          • 2.08" Intake / 1.60" Exhaust valves
          • 220cc Intake / 67cc Exhaust runners

          Cam Specs:

          • Hydraulic Roller Cam
          • .638 Intake / .622 Exhaust Lift
          • 251 Intake / 259 Exhaust Duration
          • @ .050-114 Degree Lobe Separation

          Ignition Timing:

          • 34 Degrees Total

          Also includes:

          • Holley 950cfm Double Pumper Carburetor w/ Mechanical Secondaries - BPP082951
          • BluePrint Engines Aluminum Intake Manifold - BPP427454INT
          • BluePrint Engines Valve Covers - BPP9518
          • Moroso Street / Strip Oil Pan
          • HEI Distributor - BPP3503BK
          • High Volume Oil Pump
          • Timing Cover
          • Balancer

          Notes:

          • BluePrint Motorsports engines are built for maximum performance and are intended for extreme duty applications. Because of the high-stress nature of their use, these engines are sold without any warranty, expressed, or implied.
          • This engine features a true 4-inch bore, which mathematically yields 389 CID with a 3.875-inch stroke.
          • The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
            Warranty
          BETTER THAN THE REST.
          The satisfaction of our customers is our highest priority at BluePrint Engines. We use quality components to balance your engine's rotating assembly within two grams of spec. We dyno test your crate engine and certify that it's ready to deliver horsepower and torque.

          We give your BluePrint engine the industry's best-in-class warranty for 30-months / 50,000 miles — with the extra confidence only BluePrint can provide. Our warranty applies to individual or professional installations and is fully transferable.
