  • Ford Small Block Compatible 302 c.i. Engine and 4R70W Automatic Transmission - 370 Horsepower - Standard Edition Builder Series - Polished Pulley Kit - Fuel Injected

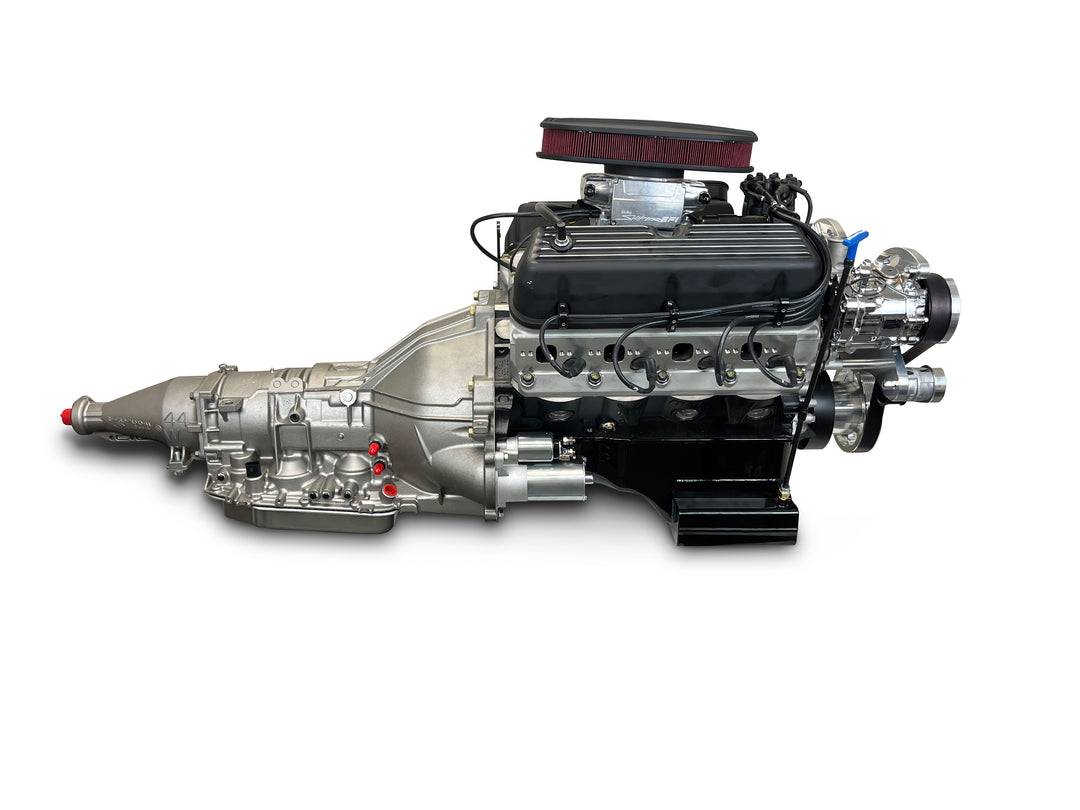

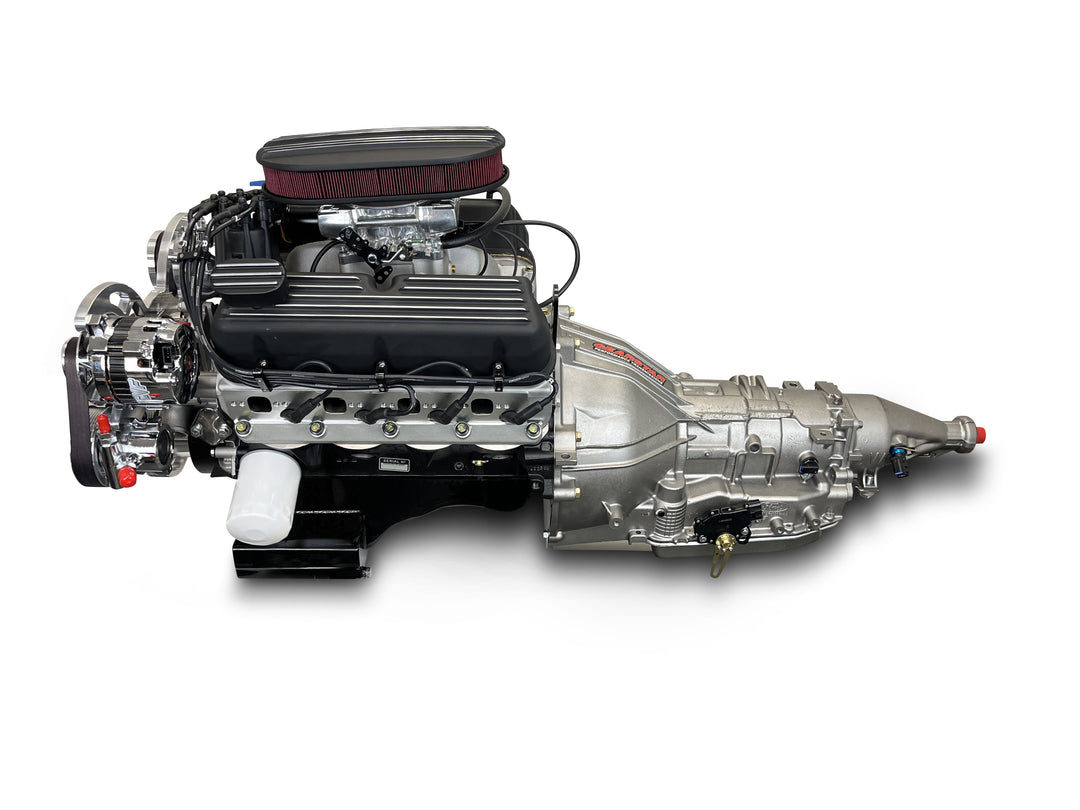

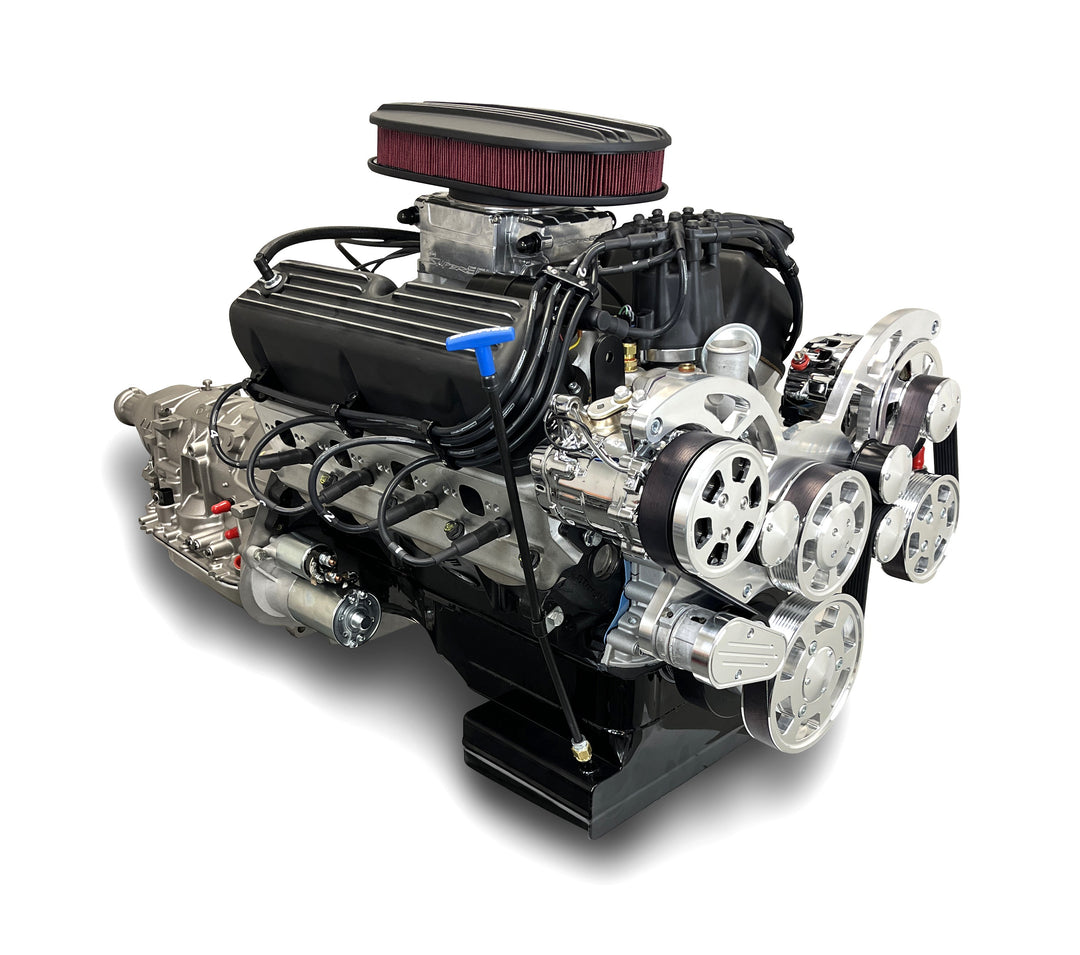

Ford Small Block Compatible 302 c.i. Engine and 4R70W Automatic Transmission - 370 Horsepower - Standard Edition Builder Series - Polished Pulley Kit - Fuel Injected

5012.25
20049.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          Description:�

          • Horsepower & Torque: 370 Horsepower / 350 ft. lbs. Torque
          • Compression Ratio: 9.5:1
          • Aluminum Heads
          • Hydraulic Roller Cam
          • Cast Crank
          • Hypereutectic Pistons

          Block:

          • BluePrint Engines High-Strength Cast Iron Block
          • Increased Deck Thickness and Strength Webbing
          • Priority Main Oiling
          • 4.000" Bore
          • 4-Bolt Main
          • 1-Piece Rear Main Seal
          • Improved Water Jacket Design

          Rotating Assembly:

          • Ford, Machined and Balanced by BluePrint Engines
          • 3.000" Stroke
          • OEM Type 5.090�� Connecting Rods
          • Hypereutectic Pistons
          • 50oz Externally Balanced

          Cylinder Heads:

          • BluePrint Aluminum Cylinder Heads�- HP9009
          • 60cc Chamber
          • 2.02" Intake / 1.60" Exhaust Valves
          • 190cc Intake / 60cc Exhaust Runners

          Cam Specs:

          • Cam Type: Roller
          • .543 Intake / .554 Exhaust Lift
          • 218 Intake / 226 Exhaust Duration
          • @.050-112 Degree Lobe Separation

          Ignition Timing:

          • 34 Degrees Total at 3500 RPM

          Also Includes:

          • Holley Sniper 2 EFI System
          • EFI Fuel Pump Kit
          • Intake Manifold
          • Water Pump
          • Spark Plugs and Wires
          • Valve Covers
          • Distributor
          • Harmonic Balancer
          • Painted Oil Pan
          • Thermostat and Thermostat Housing

          Assembled with Complete 4R70W Automatic Transmission Package:

          • Includes Electronic Transmission Controller
          • Transmission Built to 650 HP
          • 2200-2600 Stall Torque Converter
          • Flex Plate
          • Starter
          • TPS Harness Included for Integration with Transmission Controller and EFI.
          • 4 Speed, Overdrive Transmission w/Lockup
          • GEAR RATIOS
            • First: 2.84 :1.
            • Second: 1.55 :1.
            • Third: 1.00 :1.
            • Overdrive: 0.70 :1.
            • Reverse: 2.32 :1.

          Accessory Drive Installed and Included:

          • Front Accessory Drive with A/C Compressor, Water Pump, Alternator and Power Steering Pump�

          Notes:

          • The front accessory drive on this engine fits many vehicles, however it is the customer responsibility�to accurately�measure and confirm fitment.� Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
          • Note that 4R70W transmission may require modifications/replacement of driveshaft, transmission mount, exhaust routing, etc.�
          • Not for use in pollution-controlled vehicles.
          • *A bronze distributor gear is NOT recommended on this engine
          • PACKAGE SHIPS ASSEMBLED AS PICTURED.�
          • IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE, STOP�AND CALL US AT�1-800 483-4263 FOR PROPER FITMENT OR VISIT�FACTORYFIVEENGINES.COM
