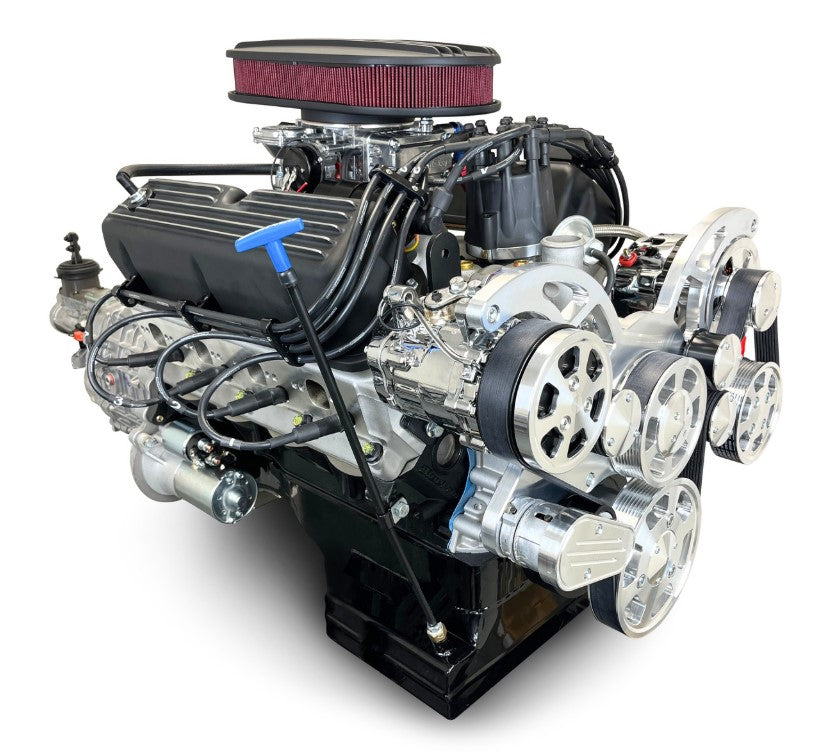

  • Ford Small Block Compatible 302 c.i. Engine and TKX Manual Transmission - 370 Horsepower - Standard Edition Builder Series - Polished Pulley Kit - Carbureted

Ford Small Block Compatible 302 c.i. Engine and TKX Manual Transmission - 370 Horsepower - Standard Edition Builder Series - Polished Pulley Kit - Carbureted

4212.25
16849.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          Description:�

          • Horsepower & Torque: 370 Horsepower / 350 ft. lbs. Torque
          • Compression Ratio: 9.5:1
          • Aluminum Heads
          • Hydraulic Roller Cam
          • Cast Crank
          • Hypereutectic Pistons

          Block:

          • BluePrint Engines High-Strength Cast Iron Block
          • Increased Deck Thickness and Strength Webbing
          • Priority Main Oiling
          • 4.000" Bore
          • 4-Bolt Main
          • 1-Piece Rear Main Seal
          • Improved Water Jacket Design

          Rotating Assembly:

          • Ford, Machined and Balanced by BluePrint Engines
          • 3.000" Stroke
          • OEM Type 5.090�� Connecting Rods
          • Hypereutectic Pistons
          • 50oz External Balance

          Cylinder Heads:

          • BluePrint Aluminum Cylinder Heads�- HP9009
          • 60cc Chamber
          • 2.02" Intake / 1.60" Exhaust Valves
          • 190cc Intake / 60cc Exhaust Runners

          Cam Specs:

          • Cam Type: Roller
          • .543 Intake / .554 Exhaust Lift
          • 218 Intake / 226 Exhaust Duration
          • @.050-112 Degree Lobe Separation

          Ignition Timing:

          • 34 Degrees Total at 3500 RPM

          Also Includes:

          • Holley Street Warrior 600cfm Vacuum Secondary Carburetor w/ Electric Choke�
          • Front accessory drive with A/C Compressor, Water Pump, Alternator and Power Steering Pump�
          • Fuel Pump
          • Intake Manifold
          • Water Pump
          • Spark Plugs and Wires
          • Valve Covers
          • MSD Pro Billet Distributor
          • Harmonic Balancer
          • Painted Oil Pan 7qt
          • Thermostat and Thermostat Housing

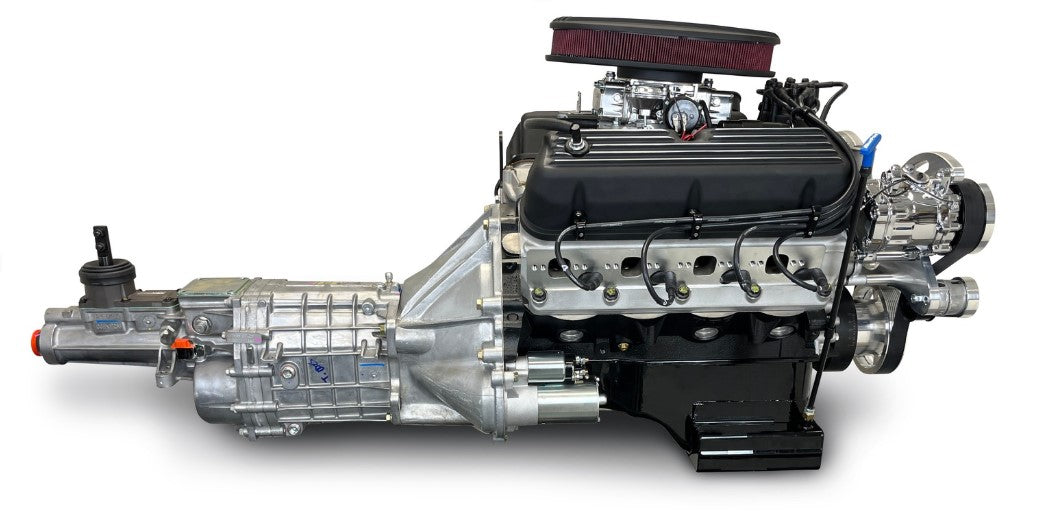

          Assembled with Complete�TKX�Transmission Package:

          • Mcleod Super Street Pro Single Disk Clutch
          • Hydraulic Throw Out Bearing
          • Aluminum Bell Housing
          • Flywheel
          • Engine Guard
          • Starter
            • First Gear Ratio:�2.87:1
            • Second Gear Ratio:�1.89:1
            • Third Gear Ratio:�1.28:1
            • Fourth Gear Ratio:�1.00:1
            • Fifth Gear Ratio:�0.81:1

          Notes:

          • Not for use in pollution-controlled vehicles.
          • The front accessory drive on this engine fits many vehicles, however it is the customer responsibility�to accurately�measure and confirm fitment.� Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
          • This engine is not compatible with factory fuel injection.
          • PACKAGE SHIPS ASSEMBLED AS PICTURED.�
          • IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE,�STOP�AND CALL US AT�1-800-483-4263 FOR PROPER FITMENT OR VISIT�FACTORYFIVEENGINES.COM

          *A bronze distributor gear is NOT recommended on this engine
