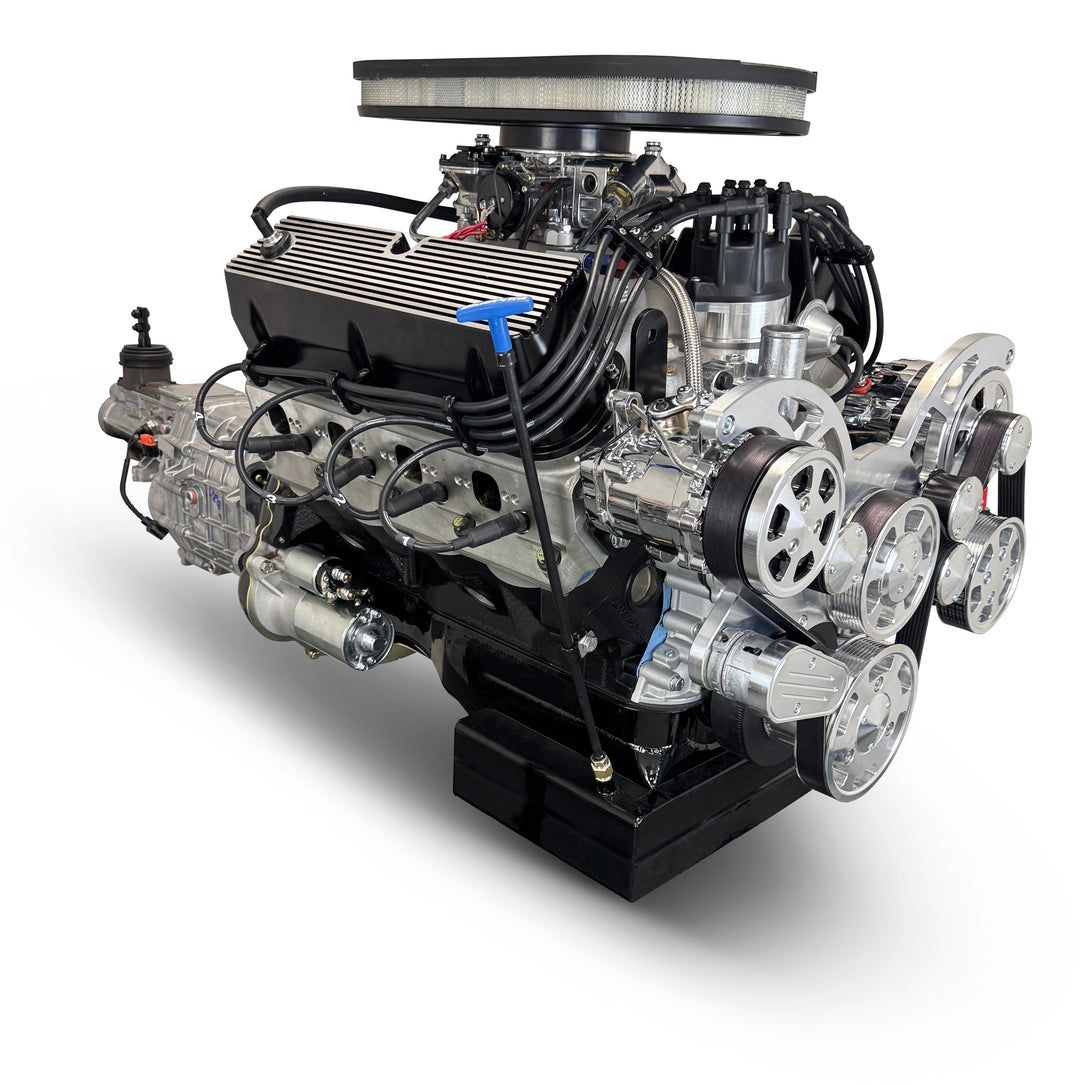

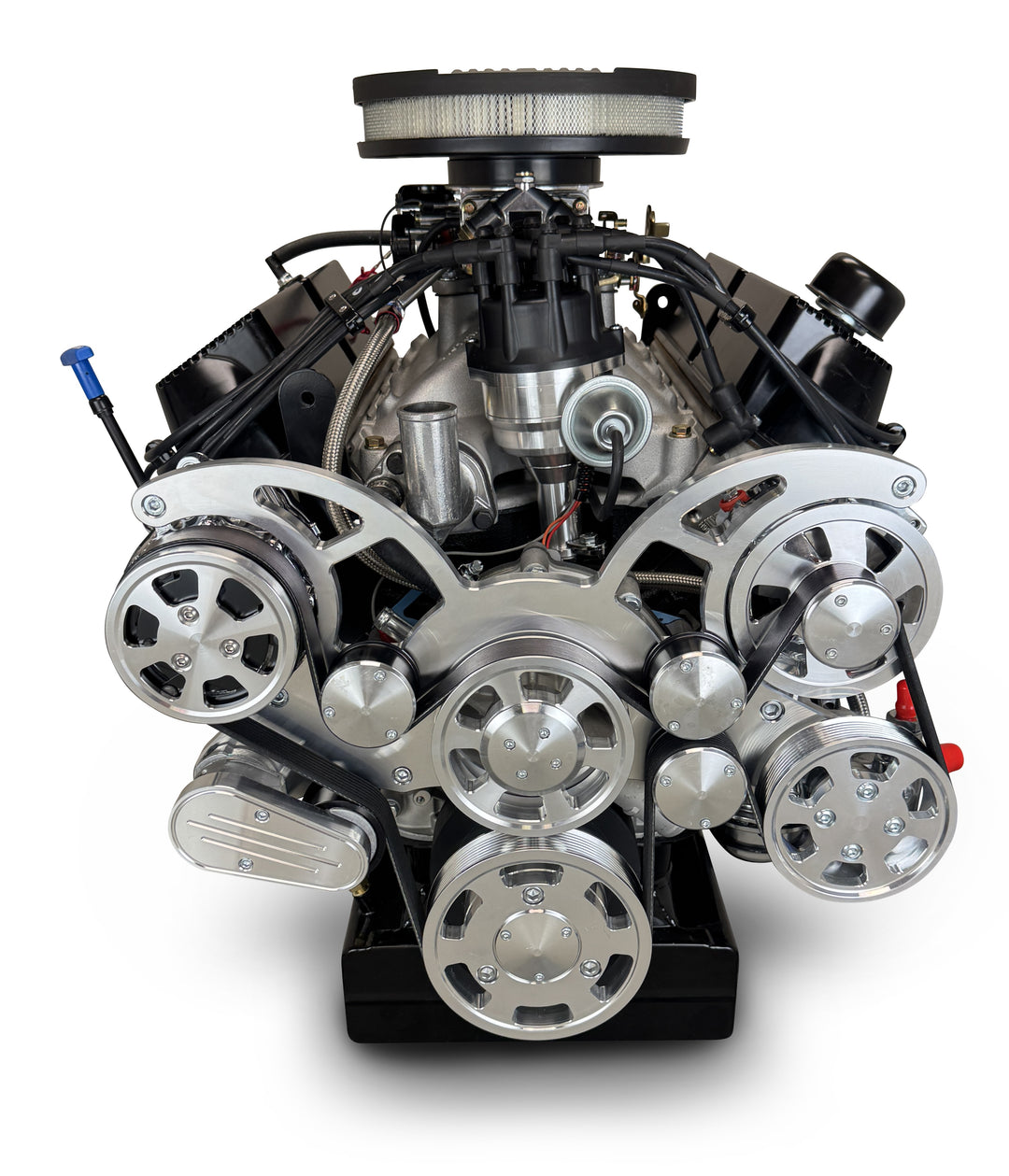

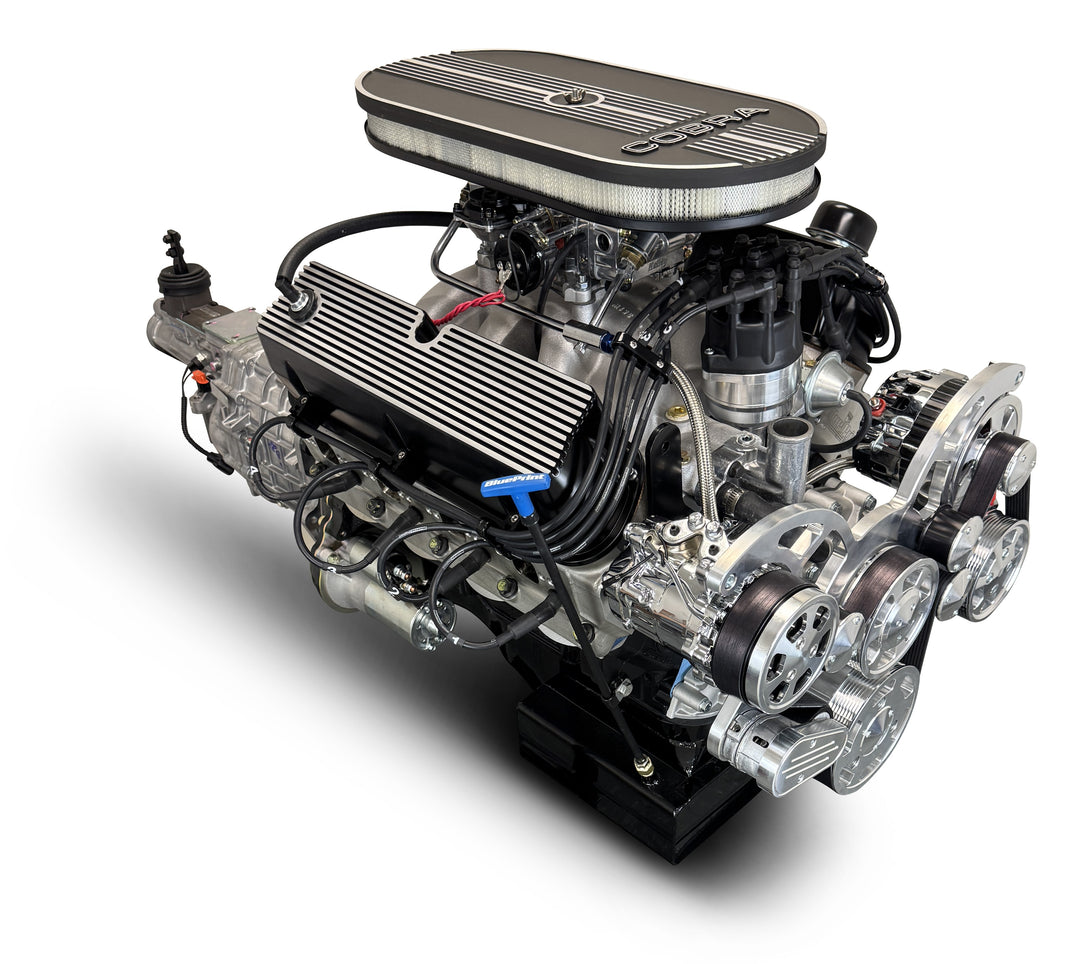

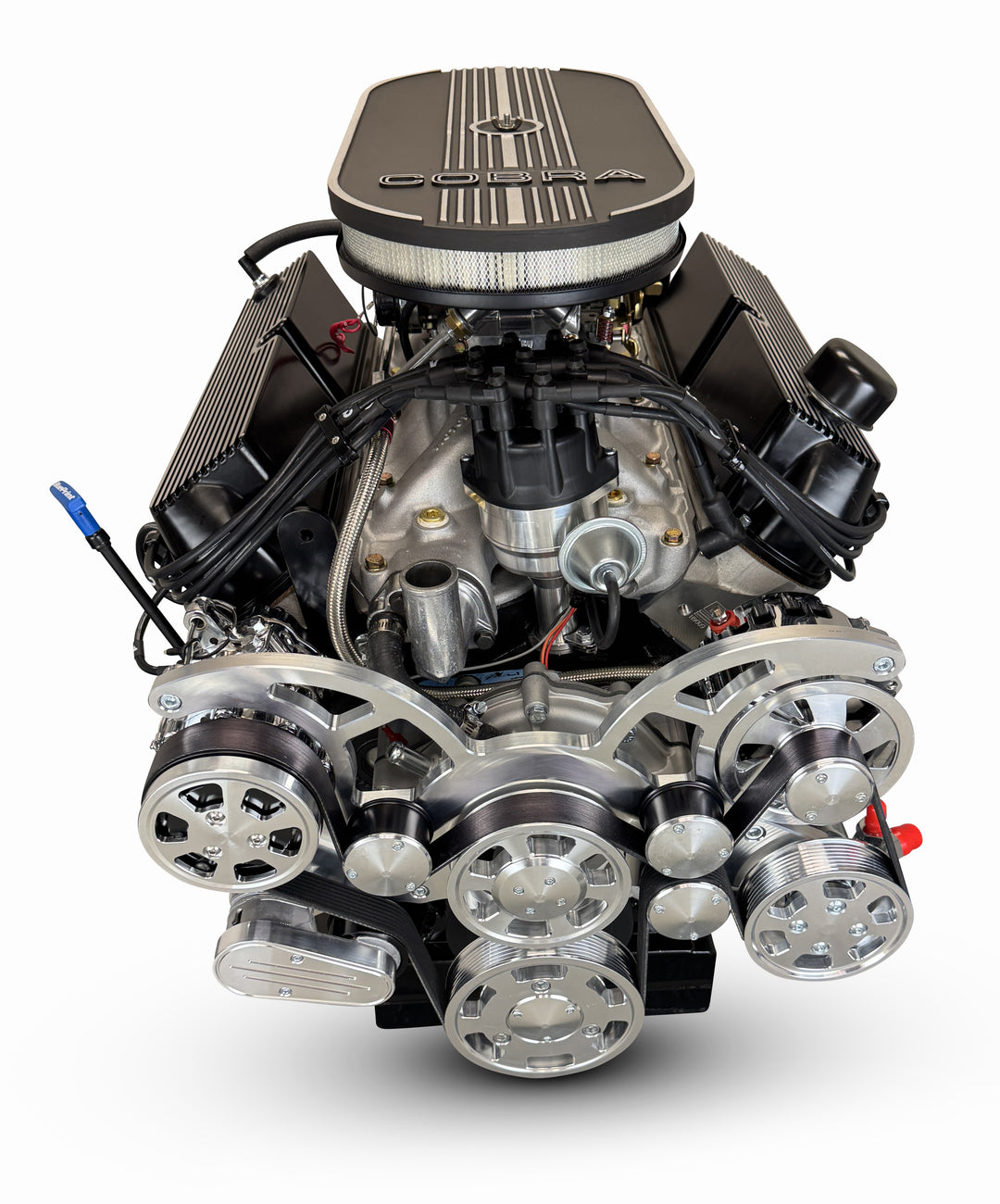

Ford Small Block Compatible 427 c.i. Engine and TKX Manual Transmission - 541 Horsepower - Cobra Edition Builder Series - Polished Pulley Kit - Carbureted

Description:�

• Horsepower & Torque: 541 Horsepower / 519ft. lbs. Torque
• Compression Ratio: 10.0:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Forged Crank
• BluePrint Engines Forged Pistons

Block:

• DART SHP Block Machined in the USA!
• 4-Bolt Main
• 4.125" Bore
• 1-Piece Rear Main Seal
• 9.500 Deck Height

Rotating Assembly:

• New Forged Crankshaft
• 4.000" Stroke
• Forged 6.250" Connecting Rods
• Forged Pistons
• Internally Balanced

Cylinder Heads:

• Aluminum Cylinder Heads�
• 60cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 205cc Intake / 70cc Exhaust Runners

Cam Specs:

• Cam Type: Roller
• .608 Intake / .608 Exhaust Lift
• 248 Intake / 258 Exhaust Duration
• @.050-114 Degree Lobe Separation

Also Includes:

• Ribbed 427 Cobra Aluminum Valve Covers

• Holley 870 cfm Carburetor
• Harmonic Balancer

• Spark Plugs & Wires
• Plug Wire Separators
• Timing Cover
• Powder Coated 9qt. Oil Pan
• Thermostat and Thermostat Housing
• Oil Filter

• Fuel Pump

• Accessory Drive with A/C Compressor, Water Pump, Alternator, and Power Steering Pump

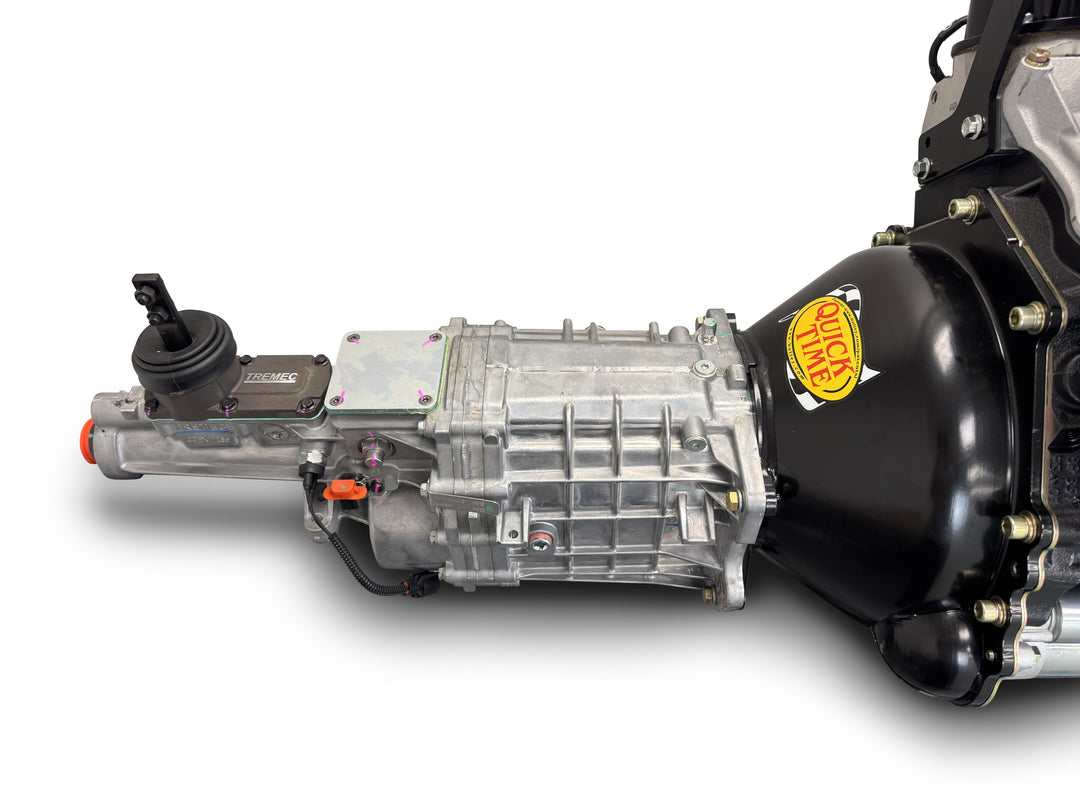

Assembled with�Complete TKX�Transmission Package:

• Mcleod Super Street Pro single disk clutch
• Hydraulic throw out bearing
• Steel bell housing
• Billet flywheel
• Engine guard
• Starter
• First Gear Ratio:�2.87:1
• Second Gear Ratio:�1.89:1
• Third Gear Ratio:�1.28:1
• Fourth Gear Ratio:�1.00:1
• Fifth Gear Ratio:�0.81:1

Notes:

• �Package Ships assembled as pictured.�
• IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE,�STOP�AND CALL US AT�1-800-483-4263 FOR PROPER FITMENT OR VISIT�FACTORYFIVEENGINES.COM
