GM LS Compatible 376 c.i. Engine and 4L65/70E Automatic Transmission - 530 Horsepower - Standard Edition Builder Series - Holley Terminator X EFI System

• Horsepower & Torque: 530 Horsepower / 495 ft. lbs. Torque
• Compression Ratio: 10.7:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Hypereutectic Pistons
• Nodular Iron Crankshaft


Block:

• BluePrint Engines High Strength Cast Iron (LSX Style) Block
• Increased Deck Thickness and Strength Webbing
• Extended Cylinder Skirt
• Priority Main Oiling
• 6-Bolt Main
• 1-Piece Rear Main Seal
• Improved Water Jacket Design
• Utilizes OEM LS3 Front and Rear Covers

Rotating Assembly:

• Nodular Iron Crankshaft
• 3.622" Stroke
• 6.098" Connecting Rods w/ 150,000 PSI Bolts
• Hypereutectic Pistons
• Internally Balanced Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads -�PS8015
• 72cc Chamber
• 2.165" Intake -1.600" Exhaust Valves
• 259cc Intake -102cc Exhaust Runners

Cam Specs:

• Cam Type: Roller Cam
• .612 Intake - .585 Exhaust Lift
• 225 Intake - 238 Exhaust Duration
• @.050-113 Degree Lobe Separation 110 ICL

Holley Terminator X Max Specific Features and Benefits:

• Real Time Fuel Map Learning Simplifies Tuning by Dynamically Adjusting the Base Fuel Rate
• On Board Bosch LSU 4.9 Wideband Control, Enabling Accurate AFR Readings and Closed Loop Tuning
• Eight High Impedance Injector Drivers, Ideal for Stock LS Injectors and Holley EFI Injectors
• Integrated 1-Bar MAP Sensor for Naturally Aspirated or Nitrous Setups, with Harness Support for External Higher Bar Sensors if needed
• 4 Configurable Inputs (12V, Ground, 5V, Frequency) and 2 Outputs (Ground, PWM) - Ideal for Electric Fans, Boost Control Solenoids, Nitrous Control and more
• Free PC Tuning Software via USB/CAN Interface for Full Laptop Control and Advance Setup
• Integrated 3.5" Touchscreen Handheld with Setup Wizard, Internal Data Logging, and Real Time Gauge Displays
• Terminator X Max ECU will Include a Base Timing Map Pre-Configured for this engine

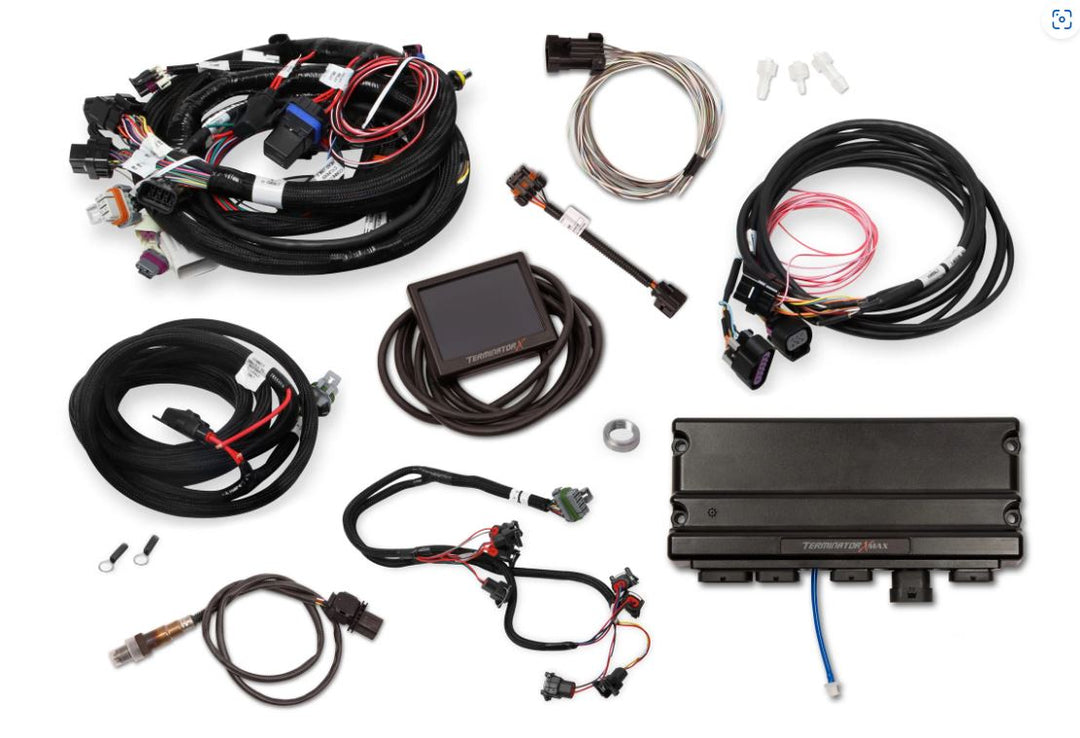

Also Includes:

• Low Profile Swap Oil Pan - BPP81073
• DBW Throttle Body - BPP12191019
• Spark Plugs and Wires
• Fuel Injectors and Rail
• LS3 Intake Manifold
• Harmonic Balancer

• Coil Packs

Assembled with Complete 4l65/70e 4 Speed Automatic�Transmission Package:

• 4L65/70E�Complete Package
• Electronic transmission controller included
• 2200-2400 Stall Torque converter
• Flex plate
• Starter

Notes:

• BluePrint Engines Recommends Air Intake Kit�BPPLS01013�to ensure correct�MAF calculations and Dyno calibration�are maintained with the above�ECU / tuning.�
• Engine/Trans Package Ships assembled
