  • GM LS Compatible 376 c.i. Pro Series Engine - 700 Horsepower - Deluxe Dressed - Black Pulley Kit - Holley Terminator X EFI System

GM LS Compatible 376 c.i. Pro Series Engine - 700 Horsepower - Deluxe Dressed - Black Pulley Kit - Holley Terminator X EFI System

5649.75
22599.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          Overview:�

          The LS-compatible platform is the undisputed king of street machines, and this BluePrint Engines 376 C.I. Pro Series LS compatible powerhouse proves exactly why. Built to dominate, this base-dressed beast unleashes a jaw-dropping 700 horsepower and 640 ft-lbs of torque, this base dressed beast packs a 9.5:1 thanks to a combination of BluePrint aluminum heads, hydraulic roller cam, forged pistons, and a nodular iron crankshaft, all securely anchored in a high-strength LSX-style block. Controlling this build is Holley��s Terminator X EFI system preloaded with a base tuning map tailored for this engine. Real-Time Fuel Map Learning simplifies tuning by dynamically adjusting fuel delivery, while the Bosch LSU 4.9 wideband sensor enables precise AFR monitoring and advanced closed-loop tuning. With eight high-impedance injector drivers, it��s compatible with both stock LS and Holley EFI injectors. An integrated 1-bar MAP sensor supports naturally aspirated or mild nitrous setups, with optional harnessing for higher-bar sensors. Four configurable inputs and two outputs give you control over accessories like electric fans, boost solenoids, or nitrous. Fine-tune via free PC software or on-the-fly with the included 3.5" touchscreen handheld, complete with setup wizard, real-time gauges, and data logging.

          Description:

          • Horsepower & Torque: 700 Horsepower / 640 FT LBS
          • Compression Ratio: 9.5:1
          • BluePrint Engines LS3 Aluminum Heads
          • BluePrint Engines Hydraulic Roller Cam
          • BluePrint Engines Forged Pistons
          • Nodular Iron Crankshaft

          Block:

          • BluePrint Engines High Strength (LSX Style) Cast Iron Block
          • Increased Deck Thickness and Strength Webbing
          • Utilizes OEM LS3 Front and Rear Covers
          • Improved Water Jacket Design
          • Extended Cylinder Skirt
          • 1-Piece Rear Main Sea
          • Priority Main Oiling
          • 4.070" Bore
          • 6-Bolt Main�

            Rotating Assembly:

            • Forged Crankshaft
            • 3.622" Stroke
            • 6.125" Connecting Rods w/ 150,000 PSI Bolts
            • Forged Pistons
            • Internally Balanced Front and Rear

            Cylinder Heads:

            • BluePrint Aluminum Cylinder Heads�- PS8015
            • 70cc Chamber
            • 2.165" Intake / 1.600" Exhaust Valves
            • 259cc Intake / 102cc Exhaust Runners

            Cam Specs:

            • Hydraulic Roller Cam
            • .612 Intake / .585 Exhaust Lift
            • 225 Intake / 238 Exhaust Duration
            • @.050-113 Degree Lobe Separation

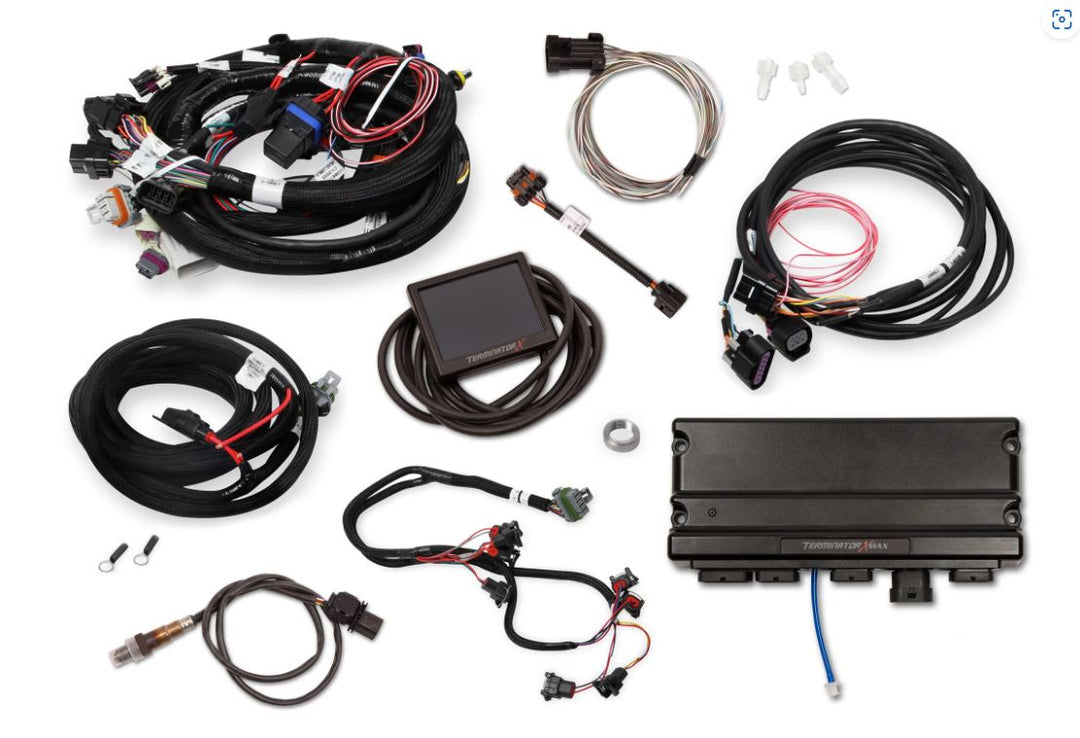

            Holley Terminator X Max Specific Features and Benefits:

            • Real Time Fuel Map Learning Simplifies Tuning by Dynamically Adjusting the Base Fuel Rate
            • On Board Bosch LSU 4.9 Wideband Control, Enabling Accurate AFR Readings and Closed Loop Tuning
            • Eight High Impedance Injector Drivers, Ideal for Stock LS Injectors and Holley EFI Injectors
            • Integrated 1-Bar MAP Sensor for Naturally Aspirated or Nitrous Setups, with Harness Support for External Higher Bar Sensors if needed
            • 4 Configurable Inputs (12V, Ground, 5V, Frequency) and 2 Outputs (Ground, PWM) - Ideal for Electric Fans, Boost Control Solenoids, Nitrous Control and more
            • Free PC Tuning Software via USB/CAN Interface for Full Laptop Control and Advance Setup
            • Integrated 3.5" Touchscreen Handheld with Setup Wizard, Internal Data Logging, and Real Time Gauge Displays
            • Terminator X Max ECU will Include a Base Timing Map Pre-Configured for this engine.

            Also Includes:

            • Front Accessory Drive with LT1 Style 150-amp Alternator, LT1 Style Water Pump, Type II Power Steering Pump with Baffled Edges, and Compact Style A/C Compressor
            • Low Profile Rear Sump Oil Pan - BPP81073
            • All Sensors Required for Engine to Run
            • DBW Throttle Body - BPP12191019
            • Magnuson TVS2650 Supercharger
            • Spark Plugs &�Wires
            • Harmonic Balancer
            • Timing Cover
            • Valve Covers
            • Coil Packs�

            Notes:

            • Not for use in pollution-controlled vehicles.
            • BluePrint Engines Recommends Air Intake Kit�BPPLS01013�to ensure correct�MAF calculations and Dyno calibration�are maintained with the above�ECU / tuning.�
