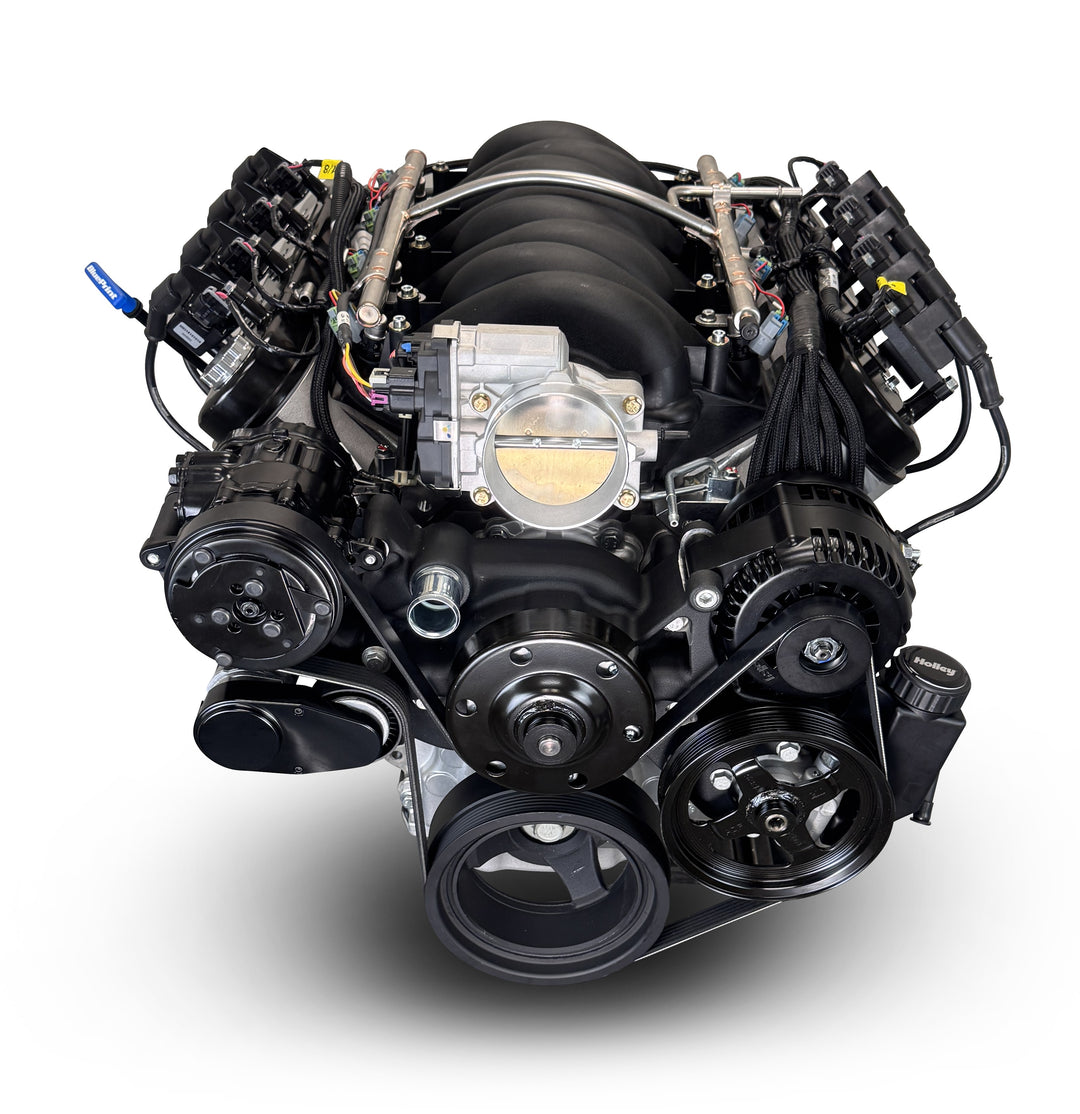

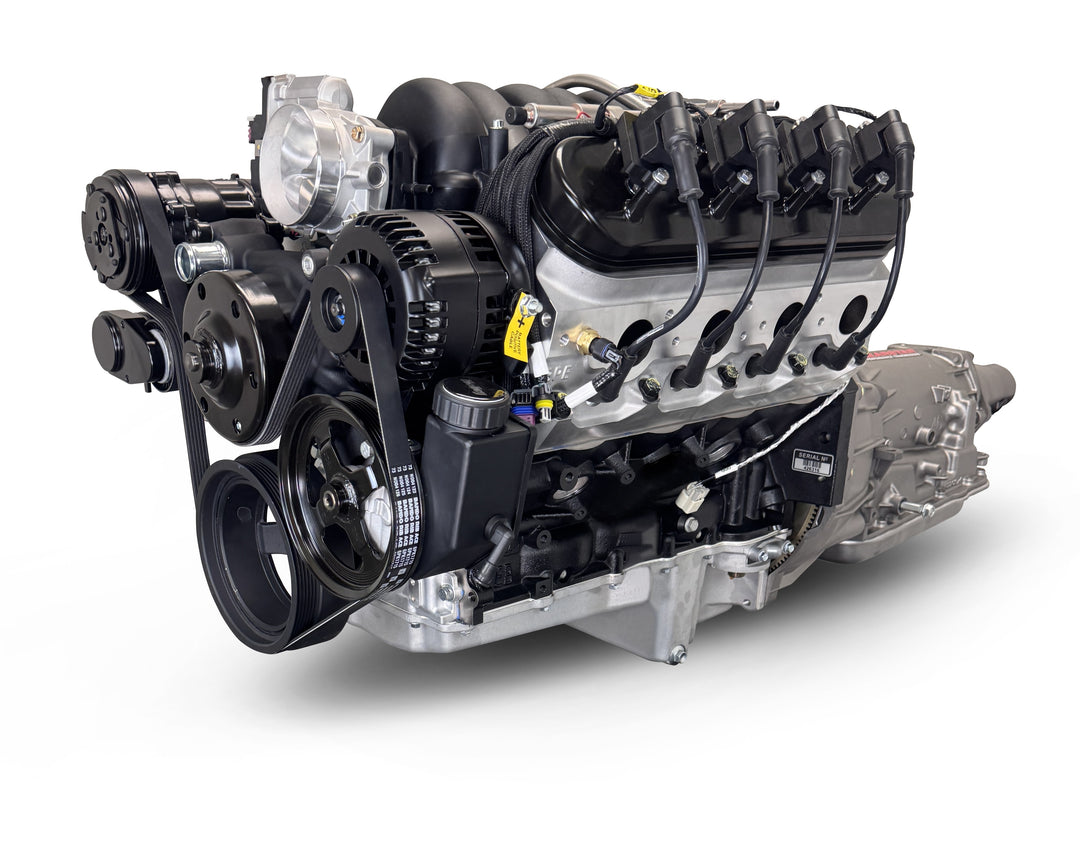

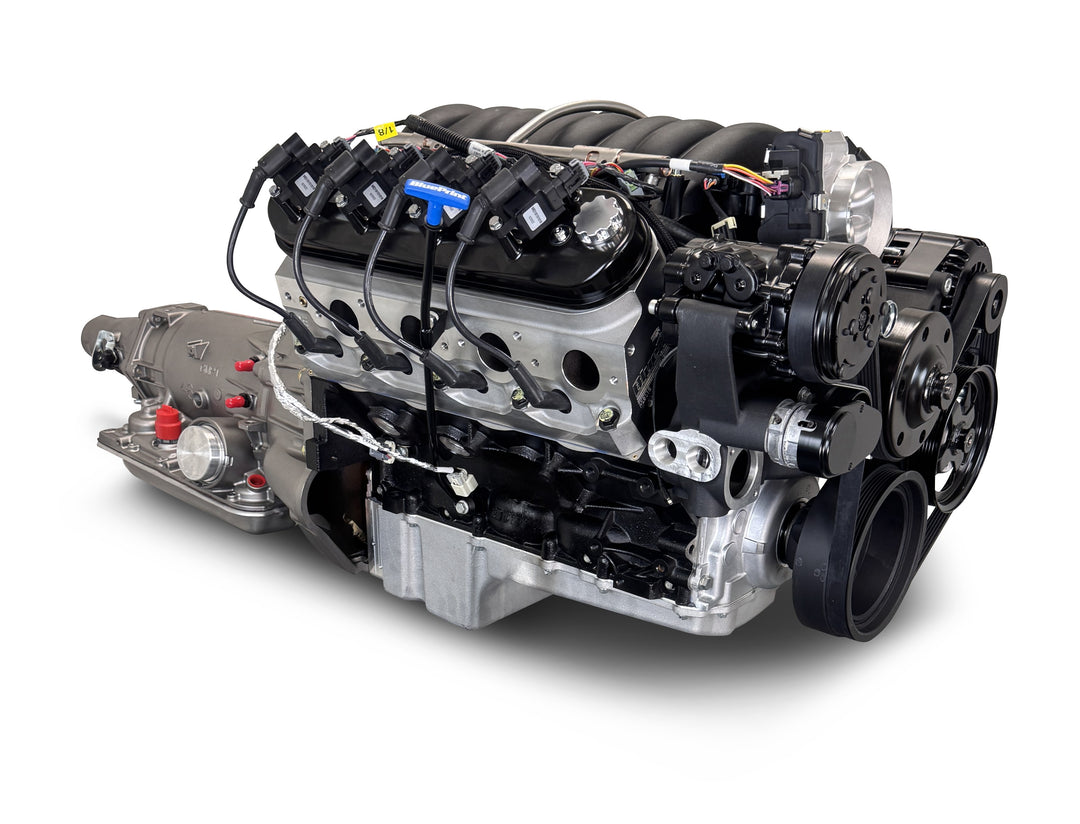

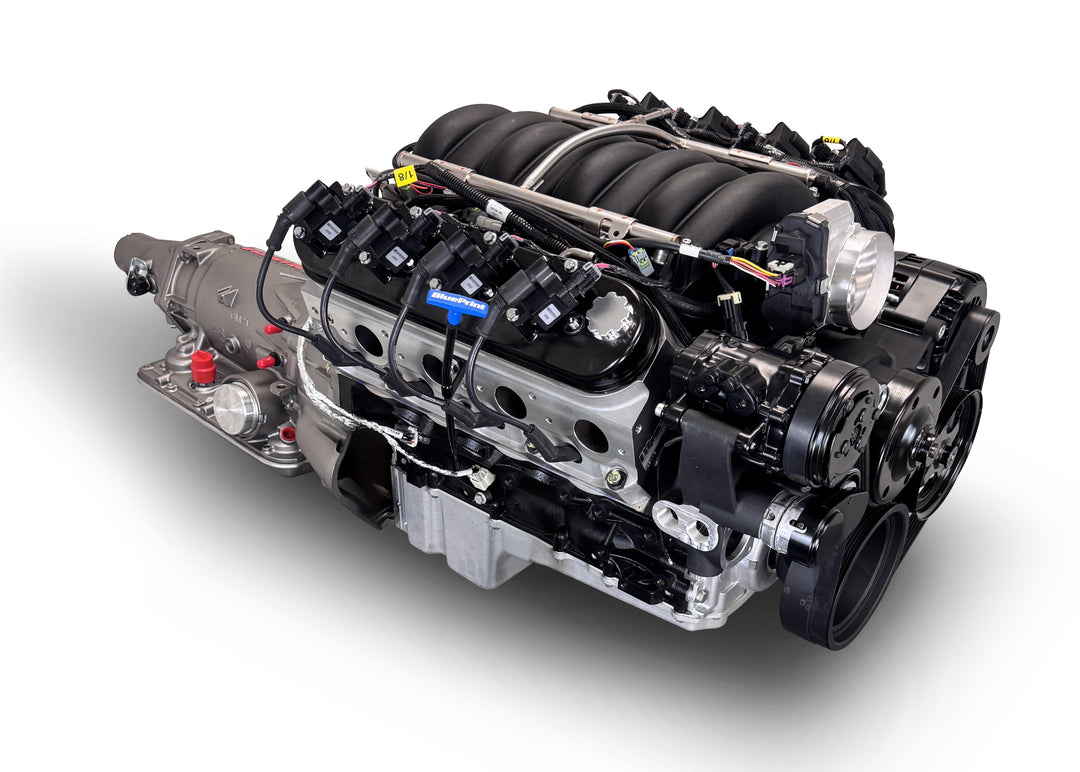

GM LS Compatible 427 c.i. Engine and 4L65/70E Automatic Transmission - 605 Horsepower - Standard Edition Builder Series - Black Pulley Kit - Holley Terminator X EFI System

• Horsepower & Torque: 605 Horsepower / 565 ft. lbs. Torque
• Compression Ratio: 11:1
• Aluminum Heads
• Hydraulic Roller Cam
• Forged Crank
• Forged Pistons

Block:

• BluePrint Engines High Strength Cast Iron (LSX Style) Block
• Increased Deck Thickness and Strength Webbing
• Extended Cylinder Skirt
• Priority Main Oiling
• 6-Bolt Main
• 1-Piece Rear Main Seal
• Improved Water Jacket Design
• Utilizes OEM LS3 Front and Rear Covers

Rotating Assembly:

• New Forged Crankshaft
• 4.125" Stroke
• Forged 6.125" Connecting Rods
• Forged Pistons
• Internally Balanced

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads�- PS8015
• 70cc Chamber
• 2.165"Intake - 1.600" Exhaust Valves
• 259cc Intake - 102cc Exhaust Runners

Cam Specs:

• Hydraulic Roller Cam

• .624 Intake - .624 Exhaust Lift
• 239 Intake - 255 Exhaust Duration
• @.050-114 Degree Lobe Separation

Ignition Timing:

• ECM Supplied with Calibration

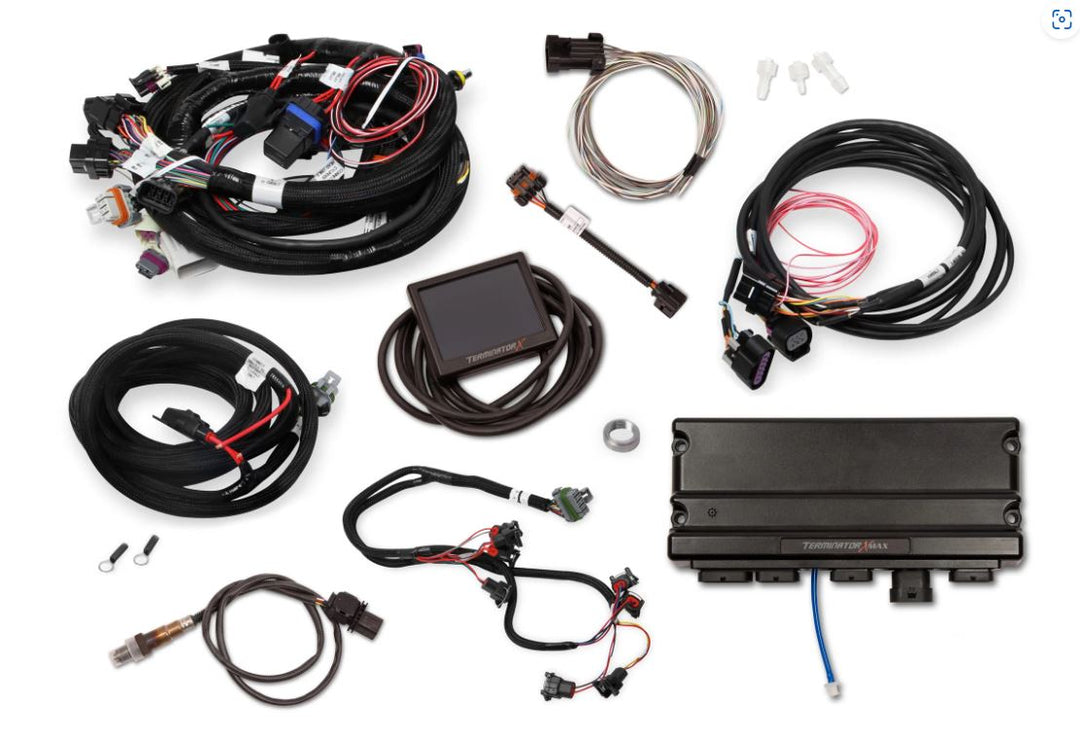

Holley Terminator X Max Specific Features and Benefits:

• Real Time Fuel Map Learning Simplifies Tuning by Dynamically Adjusting the Base Fuel Rate
• On Board Bosch LSU 4.9 Wideband Control, Enabling Accurate AFR Readings and Closed Loop Tuning
• Eight High Impedance Injector Drivers, Ideal for Stock LS Injectors and Holley EFI Injectors
• Integrated 1-Bar MAP Sensor for Naturally Aspirated or Nitrous Setups, with Harness Support for External Higher Bar Sensors if needed
• 4 Configurable Inputs (12V, Ground, 5V, Frequency) and 2 Outputs (Ground, PWM) - Ideal for Electric Fans, Boost Control Solenoids, Nitrous Control and more
• Free PC Tuning Software via USB/CAN Interface for Full Laptop Control and Advance Setup
• Integrated 3.5" Touchscreen Handheld with Setup Wizard, Internal Data Logging, and Real Time Gauge Displays
• Terminator X Max ECU will Include a Base Timing Map Pre-Configured for this engine

Also Includes:

• Front Accessory Drive with LT1 Style 150-amp Alternator, LT1 Style Water Pump, Type II Power Steering Pump with Baffled Edges, and Compact Style A/C Compressor
• LS Swap Oil Pan - Windage Tray - Pick Up Screen
• BluePrint Engines Fuel Injectors and Rail
• DBW Throttle Body - BPP12191019

• Throttle Pedal, and Sensors
• GM Plastic Intake Manifold

• Spark Plugs &�Wires
• Harmonic Balancer

• Coil Packs�


Assembled with Complete Performance Built 4l65/70e Automatic Transmission Package:

• 4L65/70E Complete Package
• Electronic Transmission Controller Included
• 2200-2400 Stall Torque Converter
• Flex Plate
• Starter

Notes:

• Retro fit oil pan will fit most 1955-1995 GM front engine, RWD, V8 cars
  Not for use in pollution-controlled vehicles or in dry sump applications.

• BluePrint Engines Recommends Air Intake Kit�BPPLS01013�to ensure correct�MAF calculations and Dyno calibration�are maintained with the provided ECU / tuning.
• Engine/Trans Package Ships assembled
