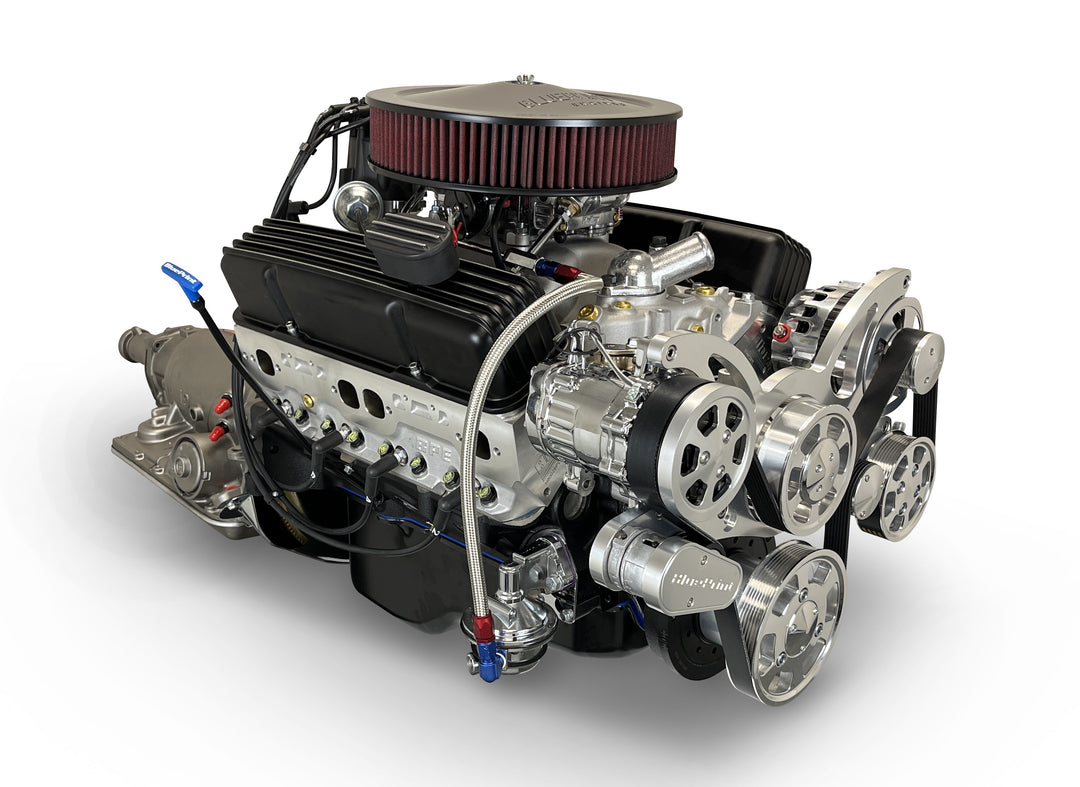

GM Small Block Compatible 383 c.i. Engine and 700R4 Automatic Transmission - 436 Horsepower - Standard Edition Builder Series - Polished Pulley Kit - Carbureted

3974.75
15899.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description

          Description:�

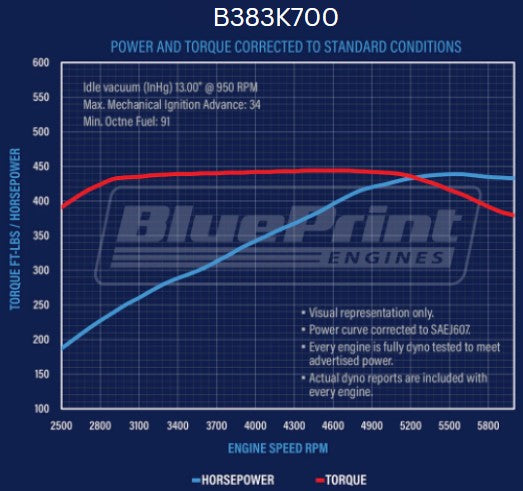

          • Horsepower & Torque: 436 Horsepower / 443 ft. lbs. Torque
          • Compression Ratio: 10.0:1
          • BluePrint Engines Aluminum Heads
          • BluePrint Engines Hydraulic Roller Cam
          • BluePrint Engines Cast Crank
          • BluePrint Engines Hypereutectic Pistons

          Block:

          • BluePrint Engines High Strength Cast Iron Block
          • Manufactured and Machined in the USA!
          • Drilled and Tapped for Clutch Linkage
          • Mech Fuel Pump Provision: Yes
          • Passenger Side Dipstick
          • 1-Piece Rear Main Seal
          • 4-Bolt Main
          • 4.000" Bore

          Rotating Assembly:

          • Cast Crankshaft
          • 3.750" Stroke
          • OEM Type 5.700" Connecting Rods w/ 150,000 PSI Bolts
          • Hypereutectic Pistons
          • Externally Balanced Front and Rear

          Cylinder Heads:

          • BluePrint Aluminum Cylinder Heads�- H8002K
          • 64cc Chamber
          • 2.02" Intake / 1.60" Exhaust Valves
          • 195cc Intake / 75cc Exhaust Runners

          Cam Specs:

          • Hydraulic Roller
          • .544 Intake / .555 Exhaust Lift
          • 230 Intake / 236 Exhaust Duration
          • @ .050-110 Degree Lobe Separation

          Also Includes:

          • Polished Front Accessory Drive with Water Pump, A/C Compressor, Alternator, and Power Steering Pump - BPP350FDACPS4
          • Holley 750cfm Classic Carburetor - BPP080508S
          • Pro Series Ready Run Distributor -�BPP3503BK
          • Aluminum Intake Manifold -�BPP350VINT
          • Thermostat and Thermostat Housing
          • Mechanical Fuel Pump -�BPP61073
          • Spark Plugs & Wires
          • Plug Wire Separator
          • Valve Covers
          • Timing Cover
          • Oil filter
          • Oil Pan

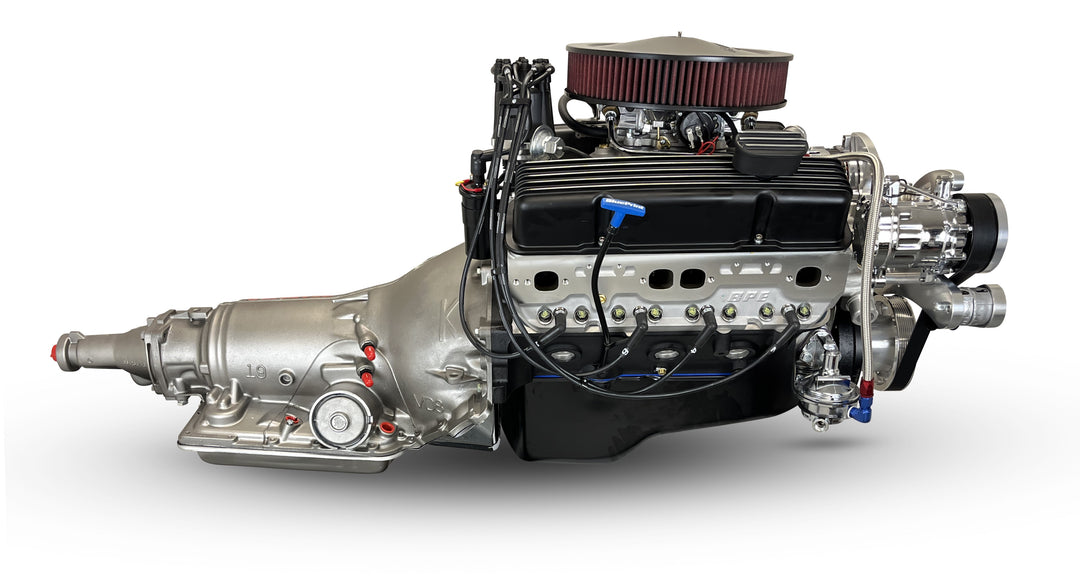

          Assembled with Complete 700R4 Automatic Transmission Package:

          • 700R4 Complete Package
          • 2200-2400 Stall Torque Converter
          • Flex Plate
          • Starter

          Notes:

          • This engine features a true 4-inch bore, which mathematically yields 377 CID with a 3.75-inch stroke.
          • Package Ships assembled as pictured.�
          • Due to numerous tire/rear gear combinations, this transmission does NOT ship with a speedometer gear or sender housing.�
          • The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
          • IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE,�STOP�AND CALL US AT�1-800-483-4263 FOR PROPER FITMENT OR VISIT�FACTORYFIVEENGINES.COM
          • The front accessory drive on this engine fits many vehicles, however it is the customer responsibility�to accurately�measure and confirm fitment.� Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
