GM Small Block Compatible 383 c.i. Engine and TKX Manual Transmission - 436 Horsepower - Standard Edition Builder Series - Polished Pulley Kit - Fuel Injected

Description:

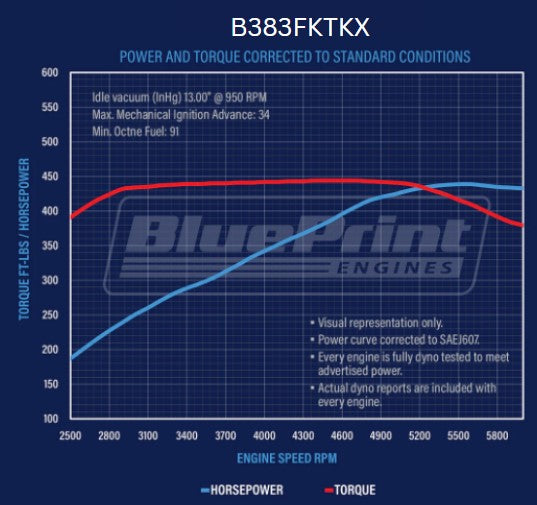

• Horsepower & Torque: 436 Horsepower / 443 ft. lbs. Torque
• Compression Ratio: 10.0:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Cast Crank
• BluePrint Engines Hypereutectic Pistons


Block:

• BluePrint Engines High Strength Cast Iron Block

• Manufactured and Machined in the USA!
• Drilled and Tapped for Clutch Linkage
• Mech Fuel Pump Provision: Yes
• Passenger Side Dipstick
• 1-Piece Rear Main Seal
• 4-Bolt Main
• 4.000" Bore

Rotating Assembly:

• Cast Crankshaft
• 3.750" Stroke
• OEM Type 5.700" Connecting Rods w/ 150,000 PSI Bolts
• Hypereutectic Pistons
• Externally Balanced Front and Rear


Cylinder Heads:

• BluePrint Aluminum Cylinder Heads�- H8002K
• 64cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 195cc Intake / 75cc Exhaust Runners

Cam Specs:

• Hydraulic Roller
• .544 Intake / .555 Exhaust Lift
• 230 Intake / 236 Exhaust Duration
• @ .050, 110 Degree Lobe Separation

Also Includes:

• Polished Front Accessory Drive with Water Pump, A/C Compressor, Alternator, and Power Steering Pump
• Holley Sniper 2 EFI - BPP550-510-3XX
• Pro Series Ready Run Distributor - BPP3503BK
• Aluminum Intake Manifold - BPP350VINT
• Thermostat and Thermostat Housing
• Mechanical Fuel Pump -�BPP61073
• Spark Plugs & Wires
• Plug Wire Separator
• Valve Covers
• Timing Cover
• Oil filter
• Oil Pan


Assembled with Complete TKX Transmission Package:

• Mcleod Super Street Pro Single Disk Clutch
• Hydraulic Throw Out Bearing
• Bell Housing
• Billet Flywheel
• Starter
• First Gear Ratio:�2.87:1
• Second Gear Ratio:�1.89:1
• Third Gear Ratio:�1.28:1
• Fourth Gear Ratio:�1.00:1
• Fifth Gear Ratio:�0.68:1

Notes:

• This engine features a true 4-inch bore, which mathematically yields 377 CID with a 3.75-inch stroke.

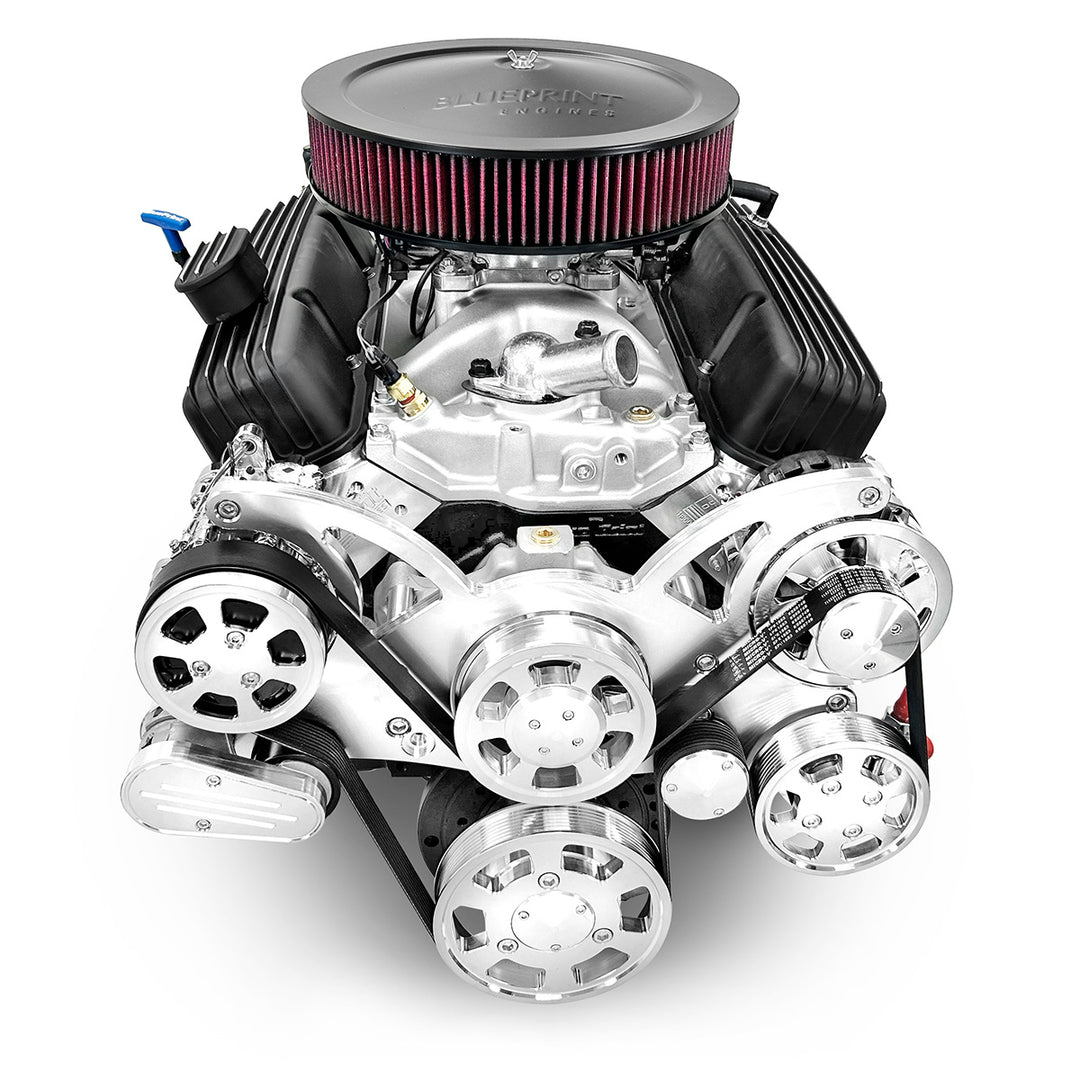

• Package Ships assembled as pictured.�
• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility�to accurately�measure and confirm fitment.� Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
• The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
• IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE,�STOP�AND CALL US AT�1-800-483-4263 FOR PROPER FITMENT OR VISIT�FACTORYFIVEENGINES.COM
