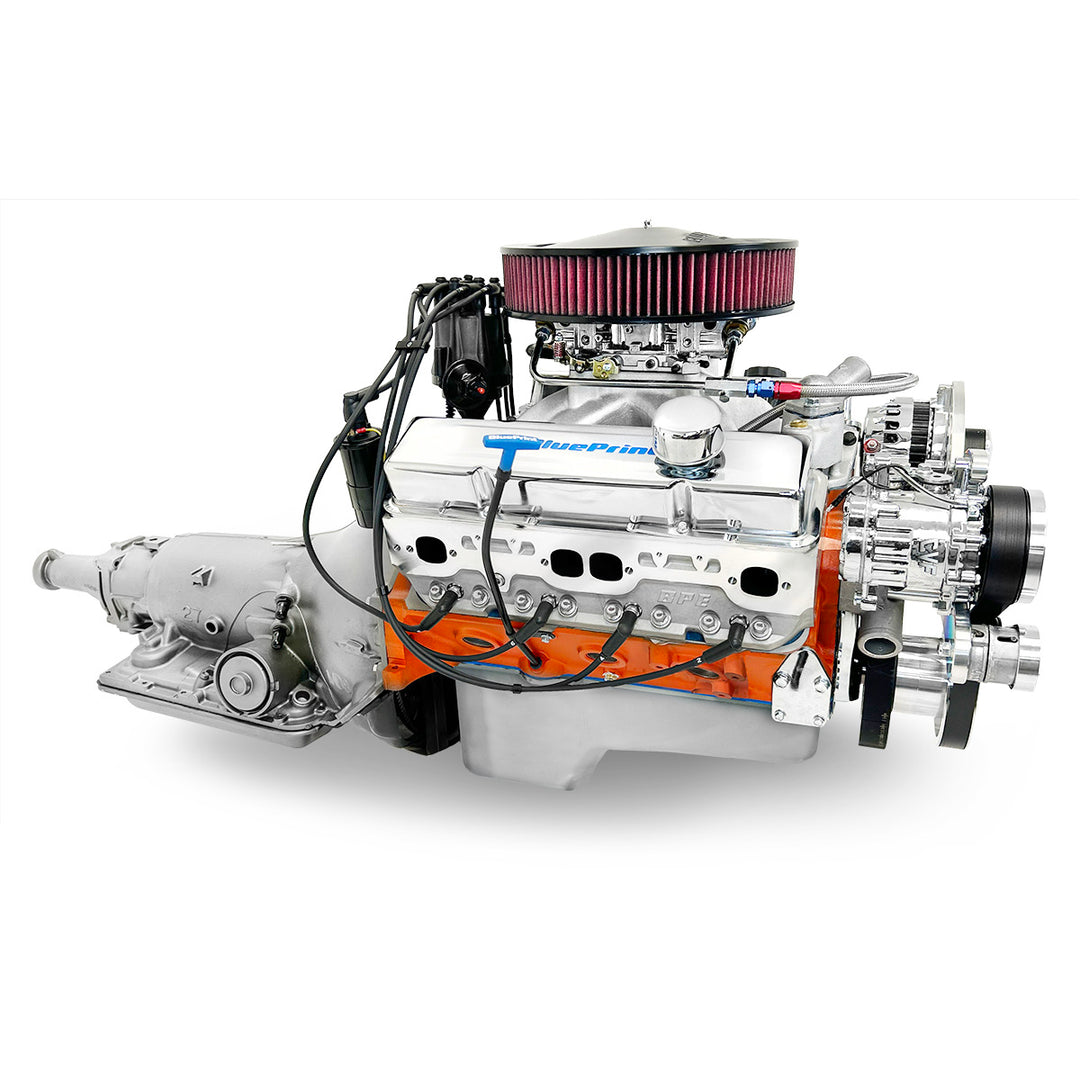

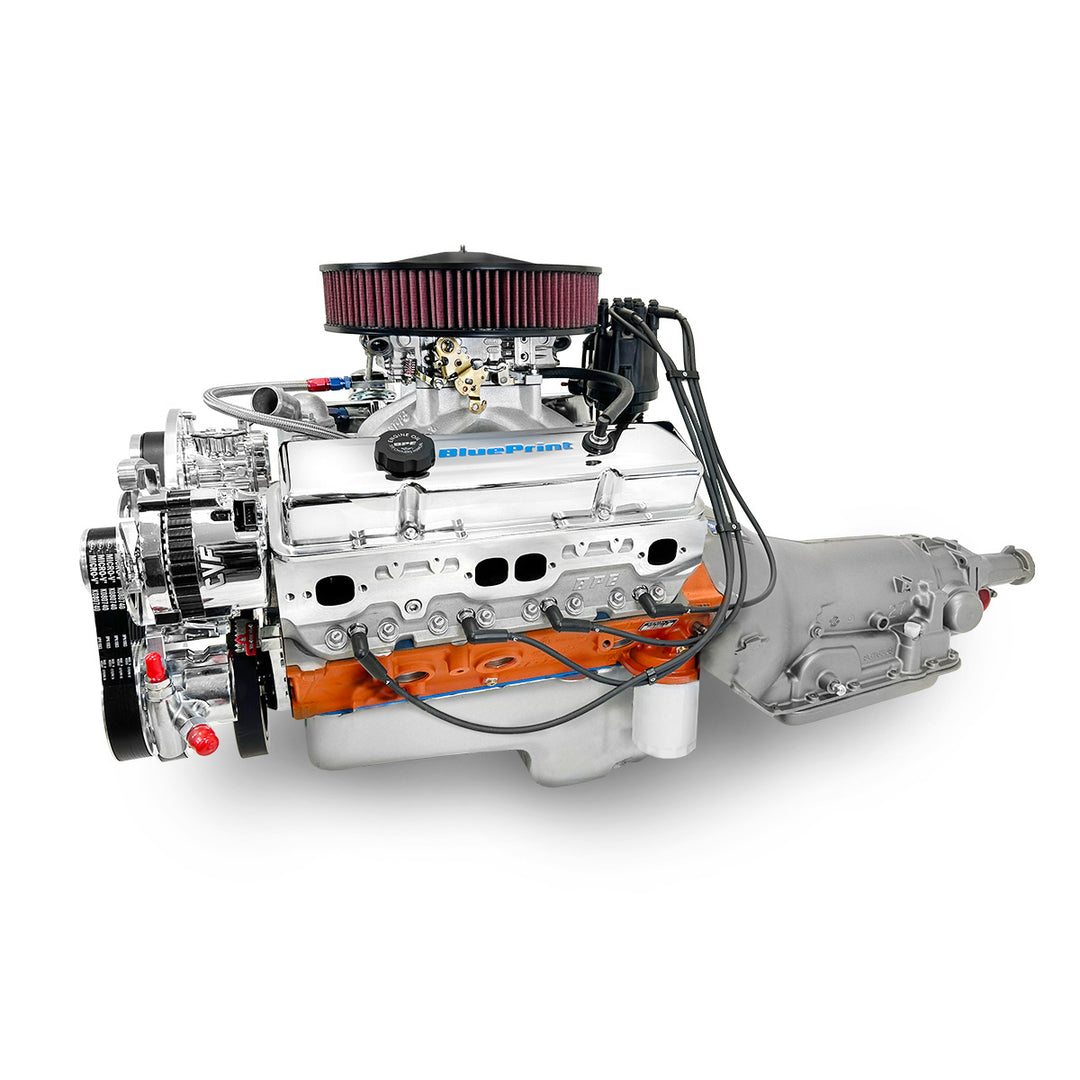

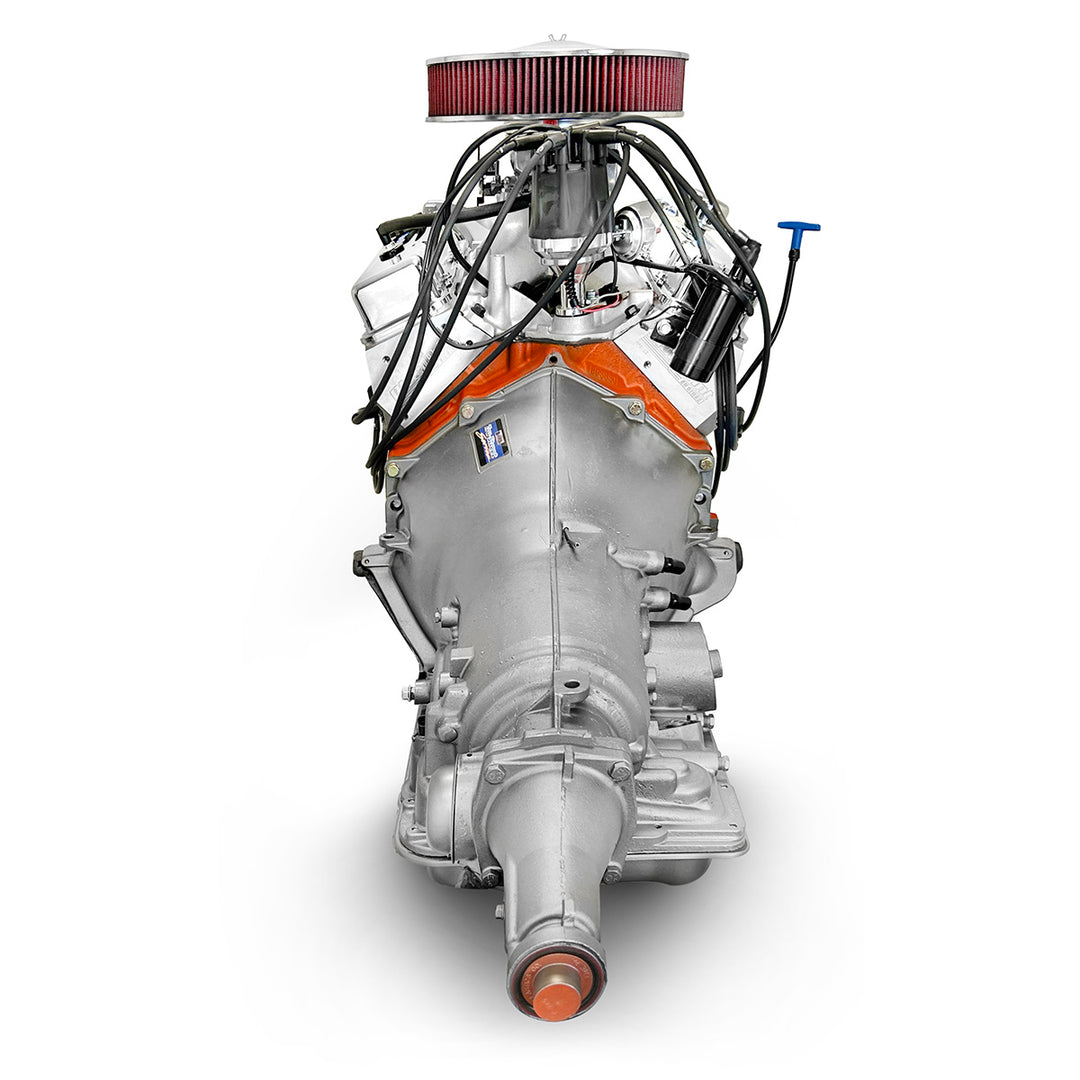

GM Small Block Compatible 454 c.i. Engine and 700R4 Automatic Transmission - 563 Horsepower - Standard Edition Builder Series - Polished Pulley Kit - Carbureted

• Horsepower & Torque: 563 Horsepower / 545 ft. lbs. Torque
• Compression Ratio: 10.0:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Forged Crank
• BluePrint Engines Forged Pistons


Block:

• BluePrint Engines High Strength Cast Iron Block
• Manufactured and Machined in the USA!
• Drilled and Tapped for Clutch Linkage
• Mech Fuel Pump Provision: Yes
• Passenger Side Dipstick
• 1-Piece Rear Main Seal
• 4-Bolt Main
• 4.250" Bore


Rotating Assembly:

• BluePrint Forged Crankshaft
• 4.000" Stroke
• Forged 6.000" Connecting Rods
• Forged Pistons
• Internally Balanced Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads�- HP8103
• 64cc Chamber
• 2.08" Intake / 1.60" Exhaust Valves
• 220cc Intake / 67cc Exhaust Runners

Cam Specs:

• Hydraulic Roller
• .638 Intake / .622 Exhaust Lift
• 251 Intake / 259 Exhaust Duration
• @ .050-114 Degree Lobe Separation

Ignition Timing:

• Initial Timing 10-16掳 and Total Timing 32-34掳

Also Includes:

• Polished Front Accessory Drive with Water Pump, A/C Compressor, Alternator, and Power Steering Pump
• Holley 950cfm Double Pumper Carburetor - BPP082951
• Pro Series Ready Run Distributor -�BPP3503BK
• Single Plane Intake Manifold - BPP427454INT

• Thermostat and Thermostat Housing
• Valve Covers - BPP9518
• Spark Plugs and Wires
• Electric Fuel Pump
• Timing Cover

• Oil Pan

Assembled with Complete�700R4 Automatic Transmission Package:

• 700R4 Complete Package
• 2200-2400 Stall Torque Converter
• Flex Plate
• Starter

Notes:

• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility�to accurately�measure and confirm fitment.� Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
• Not for use in pollution-controlled vehicles.
• Due to numerous tire/rear gear combinations, This transmission does NOT ship with a speedometer gear, or sender housing.�
• Engine is pictured with custom paint Job, available for additional charge. No-Charge options include Block color of Orange or Black, with natural heads, intake, and black oil pan.�
• The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.

�
